DDM C501c

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

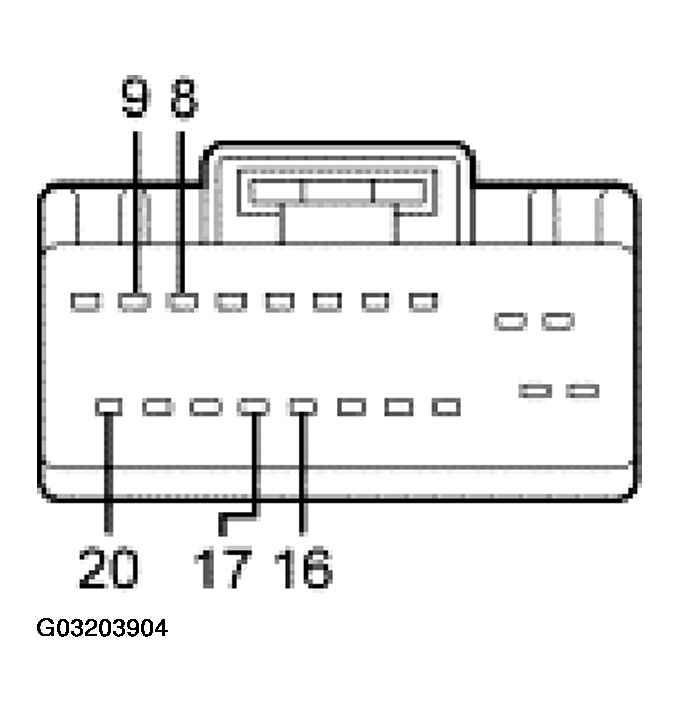

Fig 1: Identifying DDM C501C
G03203904Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION CHART

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
8 33-AA10 (YE/BK) driver door latch lock output Less than 5 ohms resistance between the DDM and the driver door latch. Greater than 10,000 ohms between the DDM and ground
9 32-AA11 (WH/VT) driver door latch unlock output Less than 5 ohms resistance between the DDM and the driver door latch. Greater than 10,000 ohms between the DDM and ground.
16 Circuit 31S-AA78 (BK/BU) driver set switch circuit Less than 5 ohms resistance between the DDM and the driver door latch. Greater than 10,000 ohms between the DDM and ground.
17 31S-AA79 (BK/WH) driver reset switch circuit Less than 5 ohms resistance between the DDM and the driver door latch. Greater than 10,000 ohms between the DDM and ground.
20 9-AA70 (BN/GN) keyless entry keypad signal return circuit 0 voltage. Less than 5 ohms resistance between the DDM and the keyless entry keypad.
