Heated Seat Switch - Rear

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left side is shown, right side is similar.

Remove the parts in the order listed in the following illustrations and table.

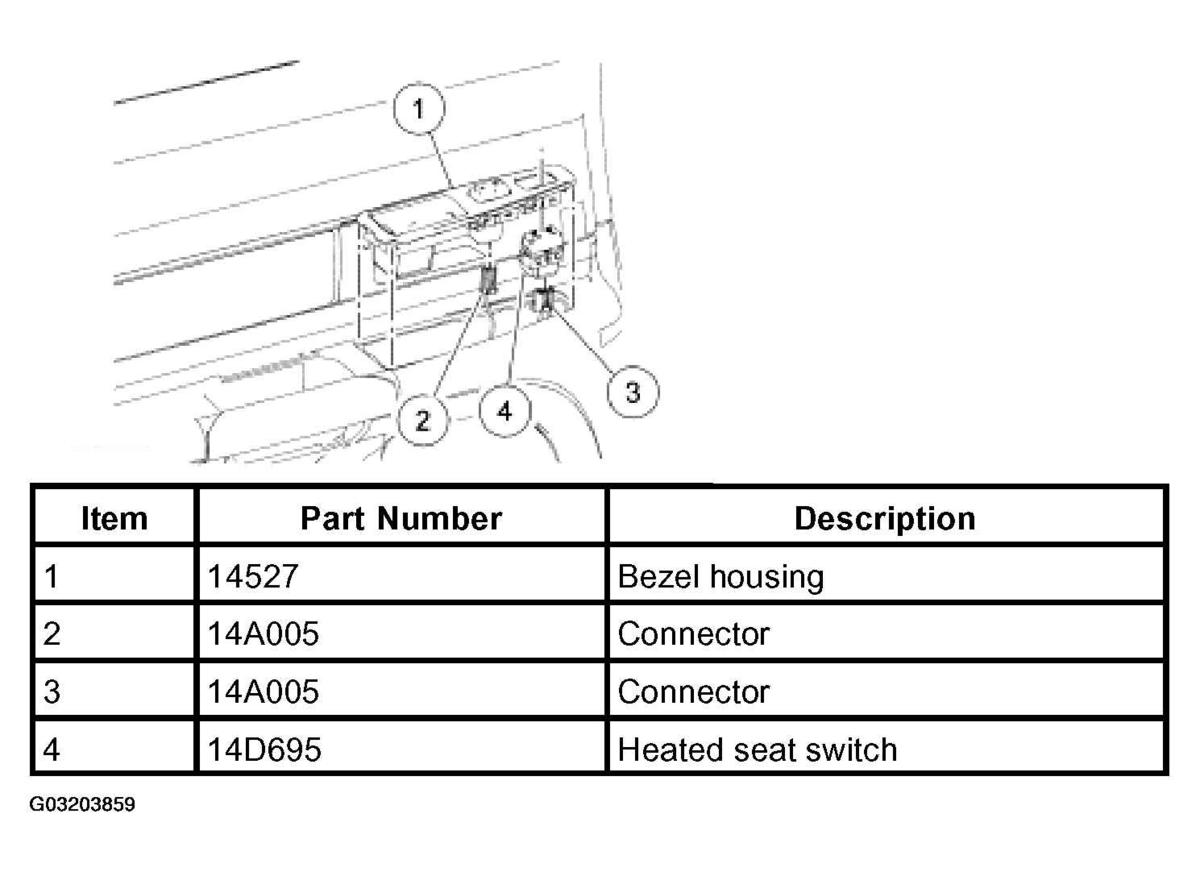

Fig 1: Identifying Removing Sequence Of Heated Seat Switch - Rear
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
