Right Rear Heated Seat Switch C822
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

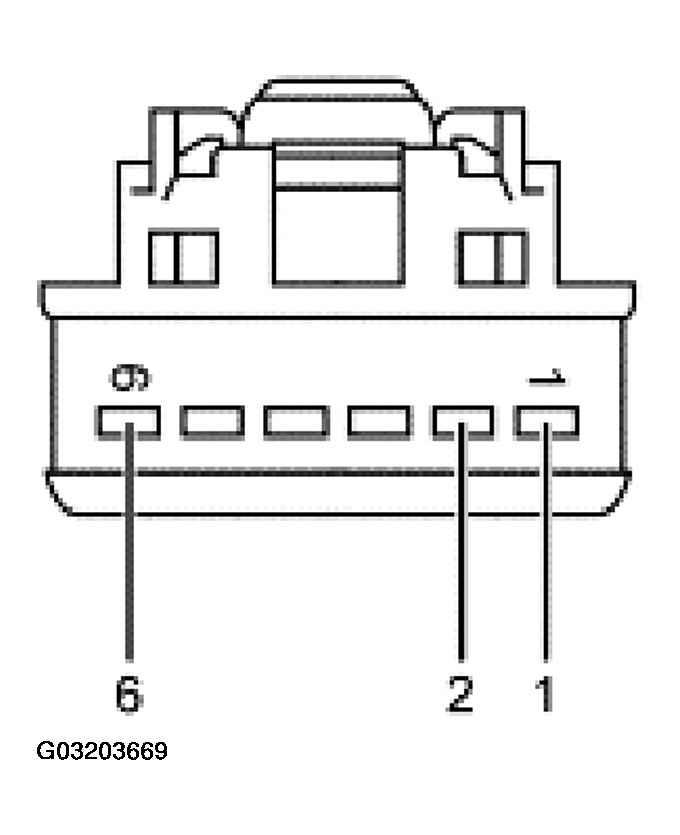

PINS CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 31-HC18 (BK/GN) Ground | Continuity to ground, less than 5 ohms. |
| 2 | CKT 8-HC21A (WH/GN) High output circuit from heated seat switch to heated seat module | Continuity to heated seat module, less than 5 ohms. |
| 6 | CKT 10-HC21A (GY/OG) Low output circuit from heated seat switch to heated seat module | Continuity to heated seat module, less than 5 ohms. |
