Passenger Power Seat Control Switch C330

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

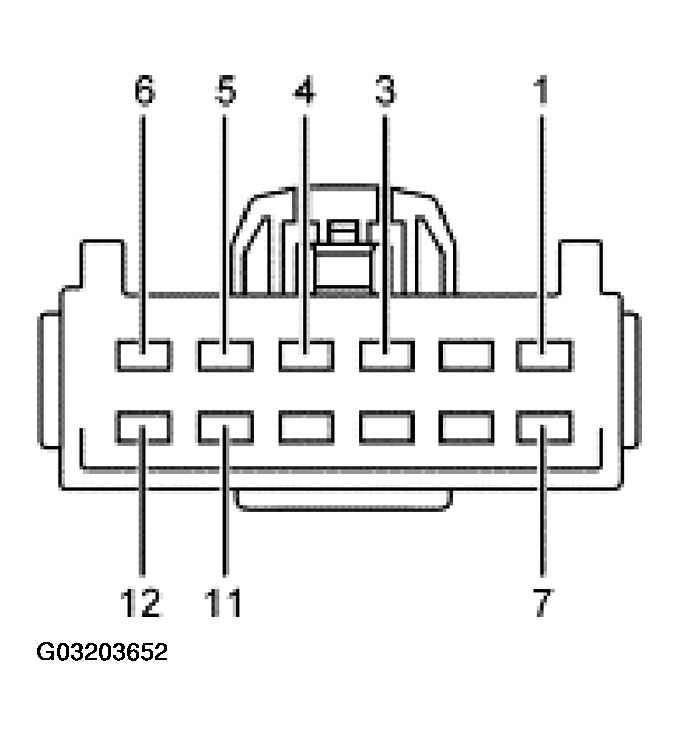

Fig 1: Identifying Passenger Power Seat Control Switch C330 Connector
G03203652Courtesy of FORD MOTOR CO.
PINS CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 31-AH42(BK) Ground Continuity to power seat switch, less than 5 ohms.
3 CKT 32-AH44 (WH/GN) Forward output circuit from the power seat switch to power seat motor Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in forward.
4 32-AH34 (WH/BK) Front up output circuit from the power seat switch to power seat motor Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in front up.
5 CKT 33-AH34 (YE/BK) Front down output circuit from the power seat switch to power seat motor Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in front down.
6 CKT 30-AH42 (RD) Battery voltage from rear RPDB Greater than 10 volts at all times.
7 CKT33-AH43 (YE/RD) Forward recline output circuit from the power seat switch to power seat motor Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in forward recline.
11 CKT 33-AH44 (YE/GN) Rearward output circuit from the power seat switch to power seat motor Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in rearward.
12 CKT 32-AH43 (WH/RD) Rearward recline output circuit from the power seat switch to power seat motor Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in rearward recline.
