Passenger Climate Controlled Seat Cushion TED C3040

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

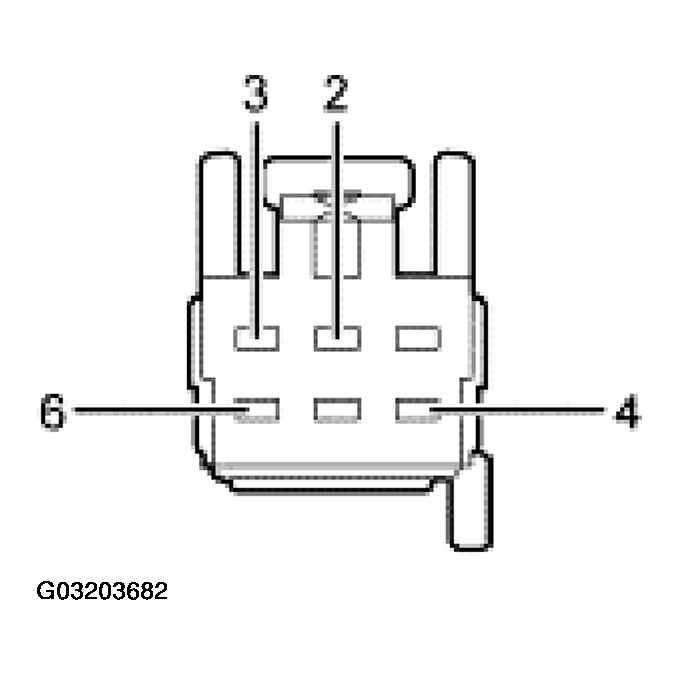

Fig 1: Identifying Passenger Climate Controlled Seat Cushion TED C3040 Connector
G03203682Courtesy of FORD MOTOR CO.
PINS CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
2 CKT 9-HC24 (BN/RD) Climate controlled seat cushion sensor signal return Continuity to CCSM from cushion TED, less than 5 ohms.
3 CKT 8-HC24 (WH/RD) Climate controlled seat cushion sensor signal Continuity to CCSM from cushion TED, less than 5 ohms.
4 CKT 31S-HC20 (BK/WH) Climate controlled seat cushion temperature sensor return Continuity to seat cushion TED, less than 5 ohms.
6 CKT 20S-HC20 (PK/WH) Climate controlled seat cushion temperature sensor feed Continuity to seat cushion TED, less than 5 ohms.
