Passenger Climate Controlled Seat Backrest TED C3039

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

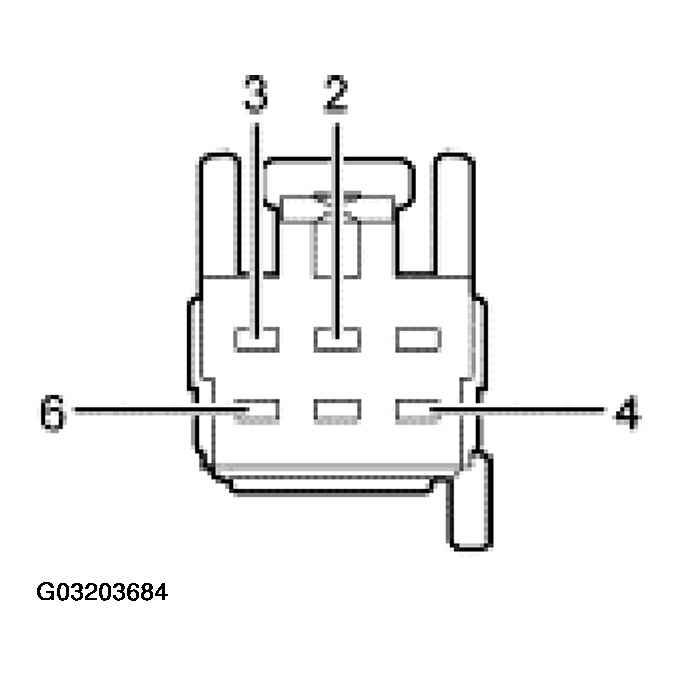

Fig 1: Identifying Passenger Climate Controlled Seat Backrest TED C3039 Connector
G03203684Courtesy of FORD MOTOR CO.
PINS CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
2 CKT 9-HC19 (BN/YE) Climate controlled seat backrest sensor signal return Continuity to CCSM from backrest TED, less than 5 ohms.
3 CKT 8-HC19 (WH/BK) Climate controlled seat backrest sensor signal Continuity to CCSM from backrest TED, less than 5 ohms.
4 CKT 31S-HC19 (BK/RD) Climate controlled seat backrest temperature sensor return Continuity to seat backrest TED, less than 5 ohms.
6 CKT 20S-HC19 (PK/OG) Climate controlled seat backrest temperature sensor feed Continuity to seat backrest TED, less than 5 ohms.
