Left/Right Rear Heated Seat Cushion Element C3167/C3169
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

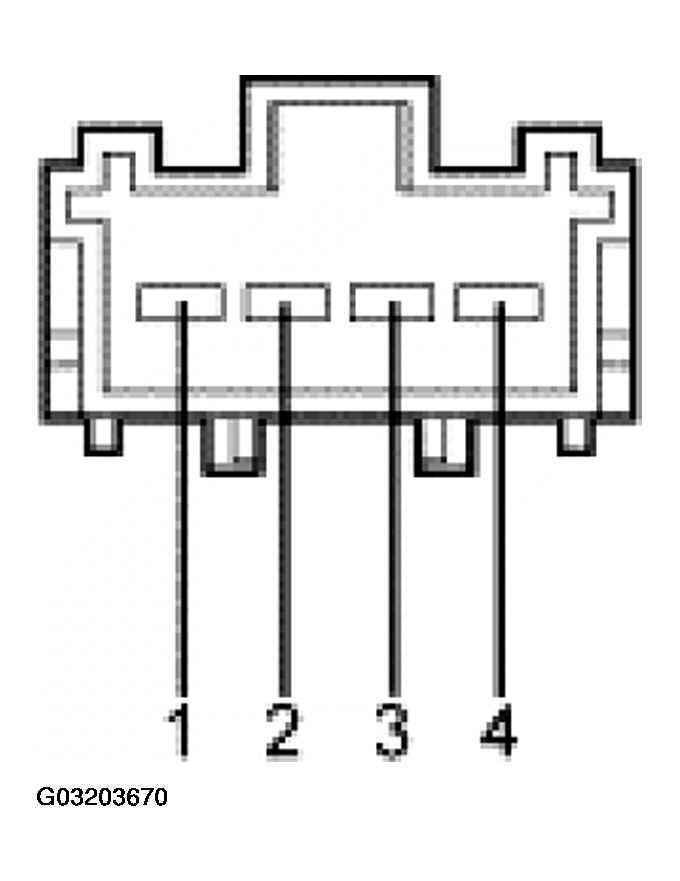

PINS CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 20S-HC17 (PK) Heated seat cushion element feed | Continuity from heated seat module, less than 5 ohms. |
| 2 | CKT 8-HC23 (WH/BK) Heated seat cushion sensor feed | Continuity from heated seat module, less than 5 ohms. |
| 3 | CKT 9-HC23 (BN/YE) Heated seat cushion sensor return | Continuity to heated seat module, less than 5 ohms. |
| 4 | CKT 20S-HC16 (PK/BU) Heated seat backrest element feed | Continuity from cushion element to backrest element, less than 5 ohms. |
