Left/Right Rear Heated Seat Backrest Element C3168/C3170
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

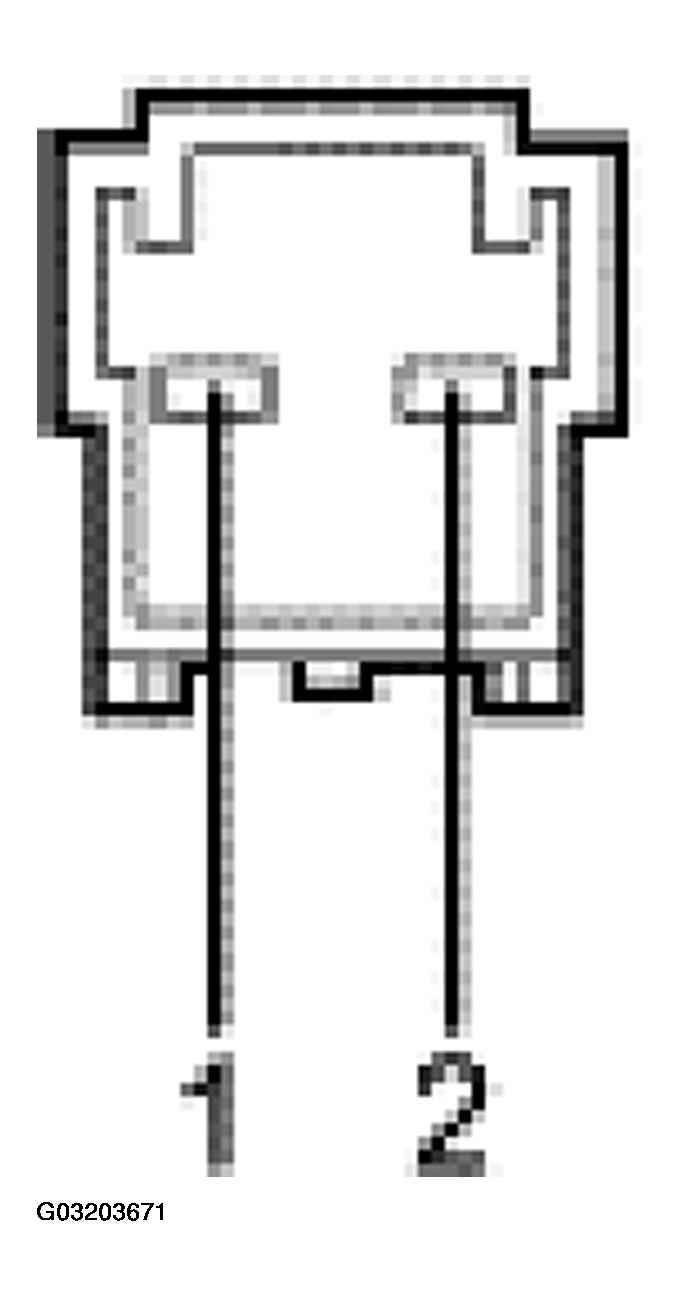

PINS CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 20S-HC16 (PK/BU) Heated seat backrest element feed | Continuity from cushion element to backrest element, less than 5 ohms. |
| 2 | CKT 31S-HC16 (BK/BU) Heated seat cushion element return | Continuity from backrest element to heated seat module, less than 5 ohms. |
