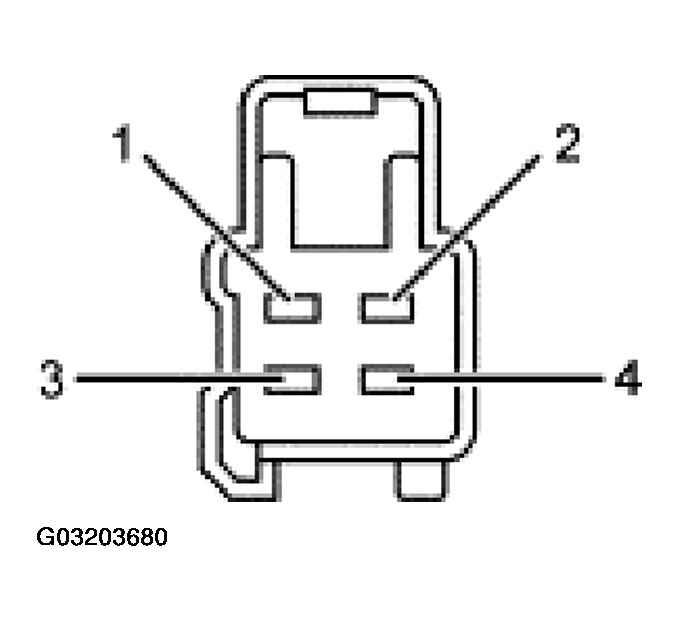

Driver and Passenger Climate Controlled Seat Fan C3033/C3038
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
PINS CIRCUIT REFERENCE
| Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 20S-FA18 (PK/OG) Climate controlled seat fan, signal | Continuity to seat fan motor, less than 5 ohms. |
| 2 | CKT 10-FA18 (GY/BK) Temperature controlled seat fan tachometer circuit | Continuity to CCSM from climate controlled seat fan, less than 5 ohms. |
| 3 | CKT 8-FA18 (WH/BK) Climate controlled seat fan voltage feed | Continuity to CCSM from climate controlled seat fan, less than 5 ohms. |
| 4 | CKT 31S-FA18 (BK/RD) Climate controlled seat fan voltage return | Continuity to CCSM from climate controlled seat fan, less than 5 ohms. |
