Driver Power Seat Motor C362
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

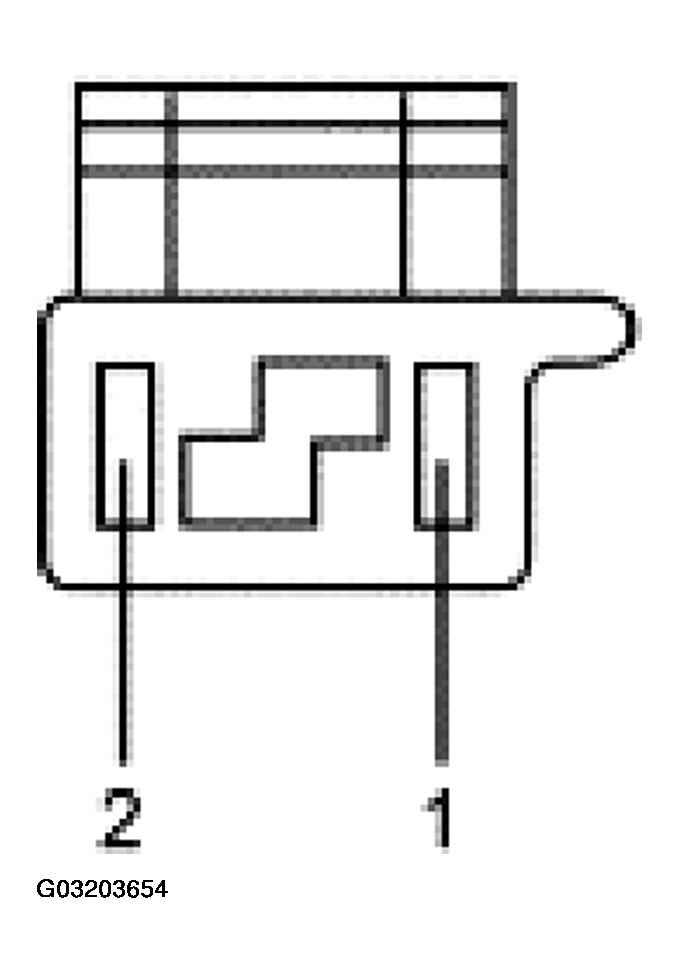

PINS CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description Normal | Condition/Measurement |
|---|---|---|
| 1 | CKT 33-AH37 (YE/GN) Rearward input circuit from power seat switch to power seat motor | Less than 5 ohms to the seat control switch. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in rearward, less than 5 ohms to ground when switch is in forward. |
| 2 | CKT 32-AH37 (WH/GN) Forward input circuit from power seat switch to power seat motor | Less than 5 ohms to the seat control switch. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in forward, less than 5 ohms to ground when switch is in rearward. |
