Driver Power Recline Seat Motor C368

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

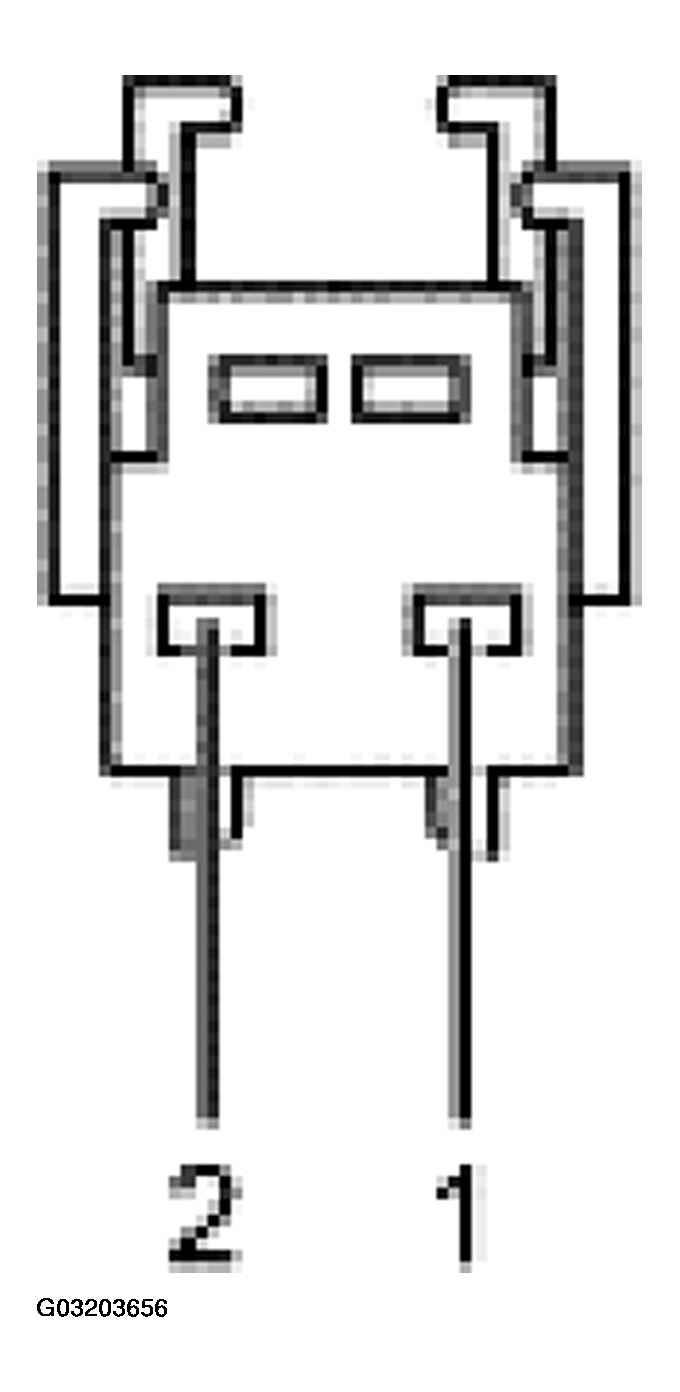

Fig 1: Identifying Driver Power Recline Seat Motor C368 Connector
G03203656Courtesy of FORD MOTOR CO.
PINS CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 32-AH36 (WH/RD) Forward recline input circuit from power seat switch to power seat motor Less than 5 ohms to the seat control switch. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in forward recline, less than 5 ohms to ground when switch is in rearward recline.
2 CKT 33-AH36 (YE/RD) Rearward recline input circuit from power seat switch to power seat motor Less than 5 ohms to the seat control switch. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in rearward recline, less than 5 ohms to ground when switch is in forward recline.
