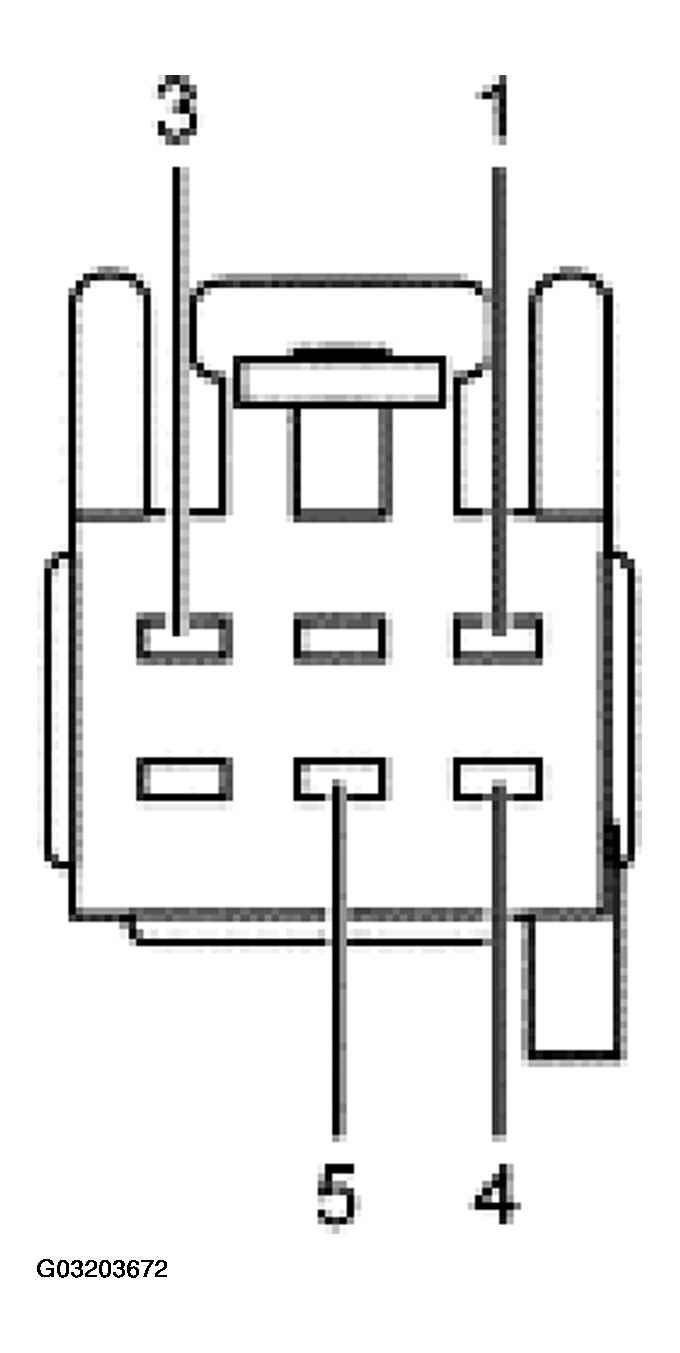

Driver Power Lumbar Switch C361
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
PINS CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 32-AH39 (WH/BU) Inflate output circuit from lumbar seat switch to power lumbar motor | Less than 5 ohms to the lumbar motor. Greater than 10,000 ohms to ground when switch is not pressed. Greater than 10 volts when connected and switch is in inflate. |
| 3 | CKT 31-AH40 (BK/GN) Ground | Continuity to lumbar seat switch, less than 5 ohms. |
| 4 | CKT 33-AH39 (YE/BU) Deflate output circuit from lumbar seat switch to power lumbar motor | Less than 5 ohms to the lumbar motor. Greater than 10,000 ohms to ground when switch is not pressed. Greater than 10 volts when connected and switch is in deflate. |
| 5 | CKT 30-AH40 (RD/GN) Battery voltage from rear PDB | Greater than 10 volts at all times. |
