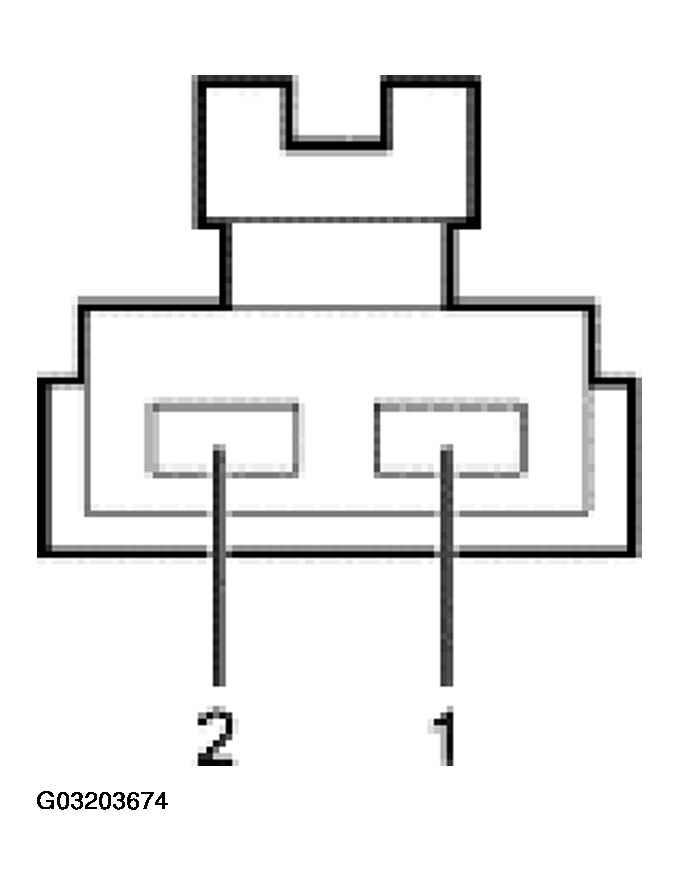

Driver Power Lumbar Motor C366
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
PINS CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 33-AH39 (YE/BU) Deflate input circuit to power lumbar motor from power lumbar seat switch | Less than 5 ohms to the lumbar control switch. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in deflate, less than 5 ohms to ground when switch is in inflate. |
| 2 | CKT 32-AH39 (WH/BU) Inflate input circuit to power lumbar motor from power lumbar seat switch | Less than 5 ohms to the lumbar control switch. Less than 5 ohms to ground when switch is not pressed. Greater than 10 volts when switch is in inflate, less than 5 ohms to ground when switch is in deflate. |
