Driver Climate Controlled Seat Cushion TED C3035

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

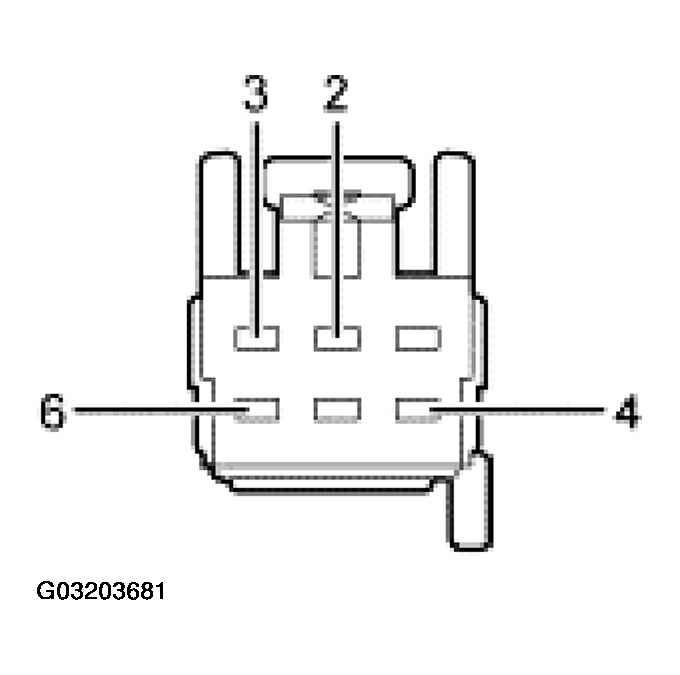

Fig 1: Identifying Driver Climate Controlled Seat Cushion TED C3035 Connector
G03203681Courtesy of FORD MOTOR CO.
PINS CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
2 CKT 9-HC23 (BN/YE) Climate controlled seat cushion return signal Continuity to CCSM from cushion TED, less than 5 ohms.
3 CKT 8-HC23 (WH/BK) Climate controlled seat cushion sensor signal Continuity to CCSM from cushion TED, less than 5 ohms.
4 CKT 31S-HC17 (BK/OG) Climate controlled seat cushion temperature sensor return Continuity to seat cushion TED, less than 5 ohms.
6 CKT 20S-HC17 (PK) Climate controlled seat cushion temperature sensor feed Continuity to seat cushion TED, less than 5 ohms.
