Windshield Washer Pump and Reservoir

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not make electrical connections prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.

Disconnect the battery ground cable.
Position the RF splash shield aside. For additional information, refer to FENDER .
Remove the components in the order indicated in the following illustration and table.

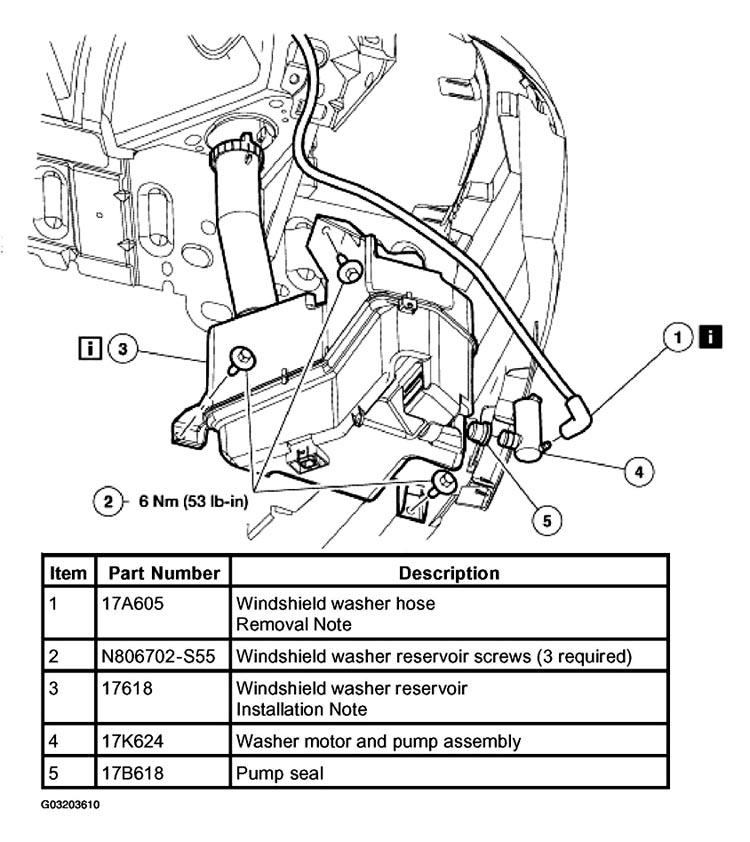

Fig 1: Removing Windshield Washer Pump And Reservoir
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 1: Windshield Washer Hose Removal Note

Windshield washer fluid should be collected in a container after the windshield washer hose is disconnected.

Item 3: Windshield Washer Reservoir Installation Note

Do not make electrical connections prior to filling the windshield washer reservoir.
Do not operate the windshield washer pump prior to filling the windshield washer reservoir.
