Rear Bumper

1. To remove individual components, only carry out the listed steps.
   COMPONENTS REMOVING STEPS



   Component	Steps
   Rear bumper cover	1-6
   Rear bumper insulator	1-8
   Rear bumper beam	1-11

2. Remove the components in the order listed in the following illustration and table.

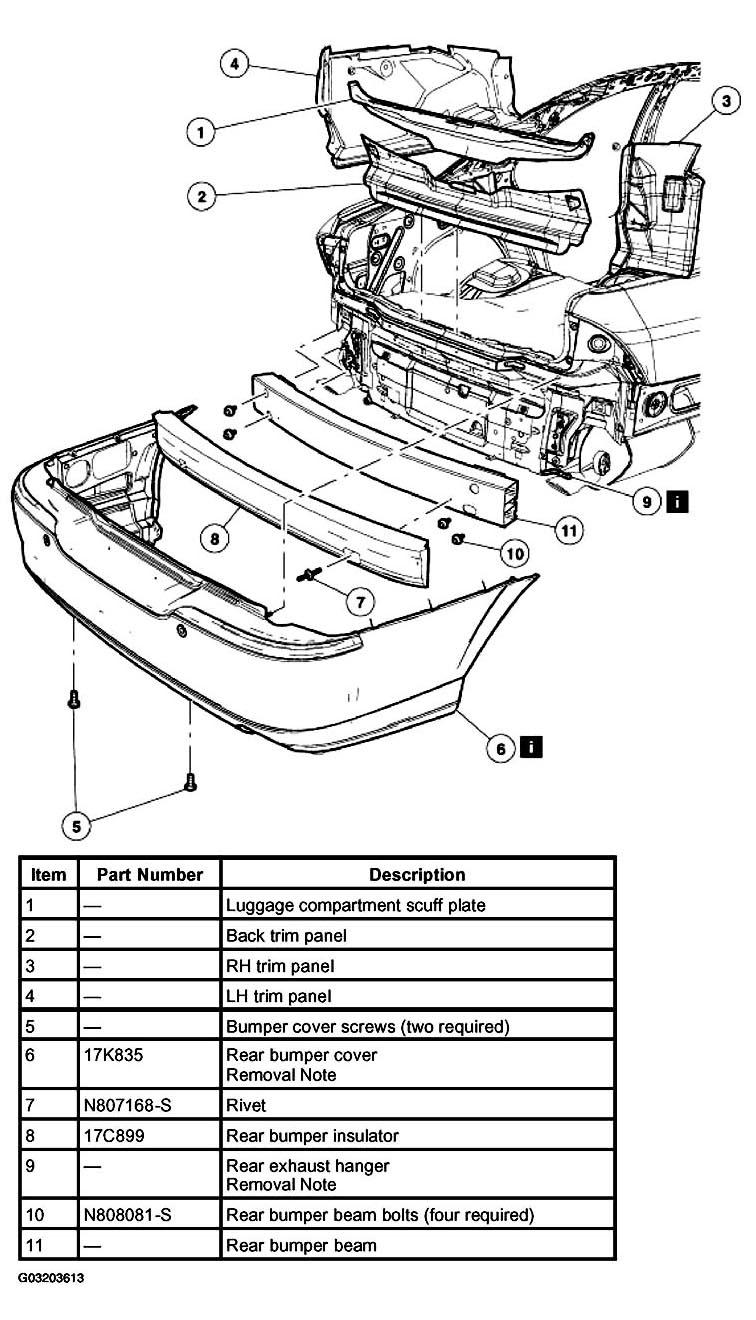

   Fig 1: Removing Rear Bumper

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.
   • Transfer components as necessary.

Item 6: Rear Bumper Cover Removal Note

1. Remove the four inner fender screws.

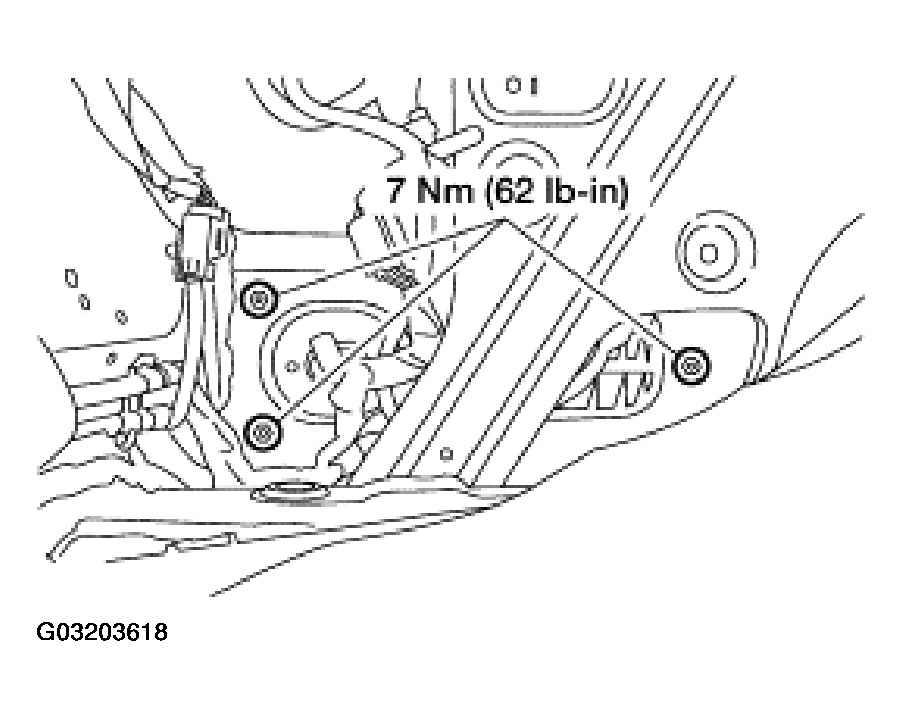

   Fig 2: Removing Four Inner Fender Screws

   Courtesy of FORD MOTOR CO.
2. RH side only, remove the rear bumper cover bolt and the nut located in the wheel well area.

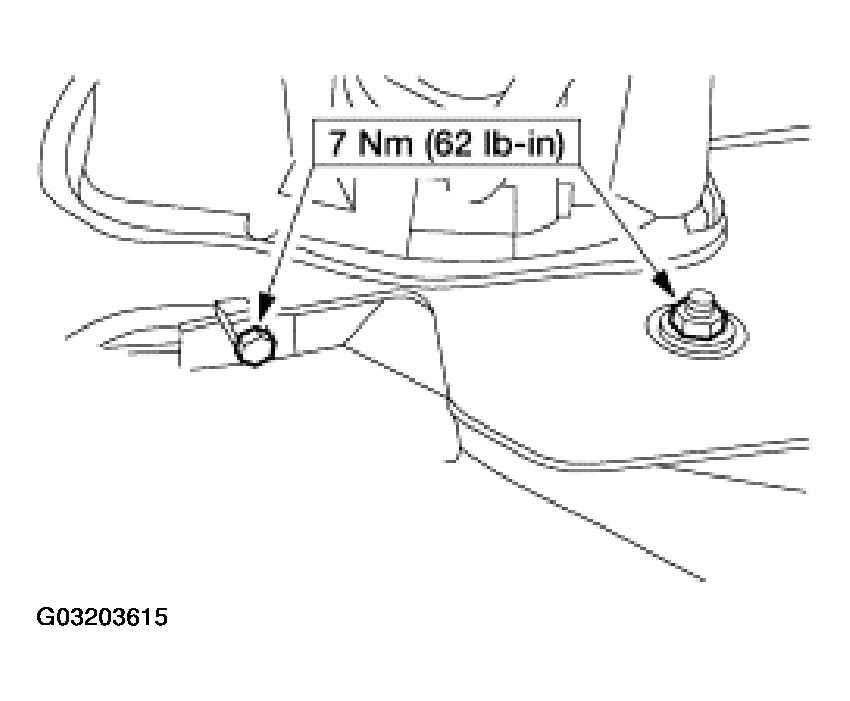

   Fig 3: Removing Rear Bumper Cover Bolt

   Courtesy of FORD MOTOR CO.
3. LH side only, remove the rear bumper cover bolt.

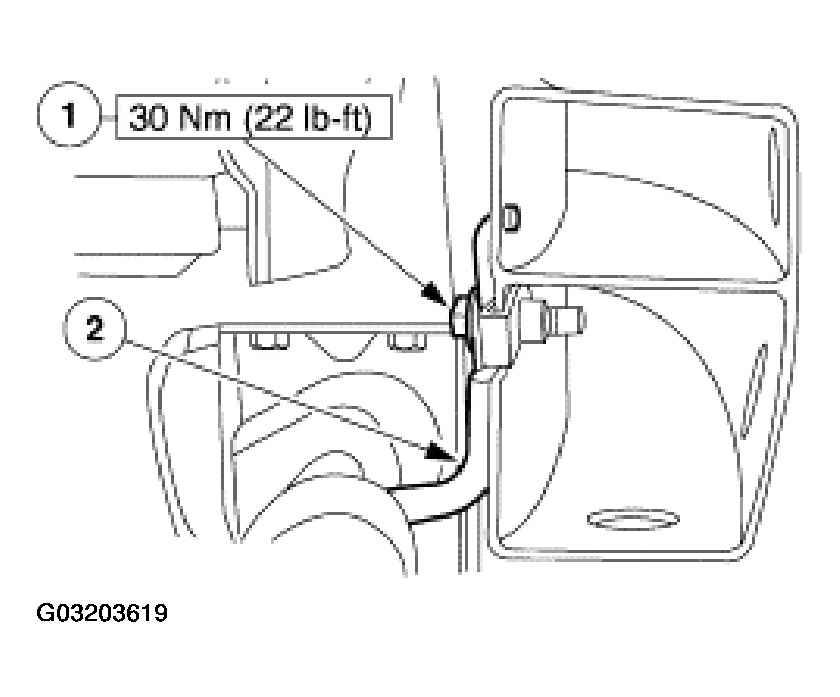

   Fig 4: Removing Rear Bumper Cover Bolt

   Courtesy of FORD MOTOR CO.
4. From the luggage compartment, remove the rear bumper cover nuts.

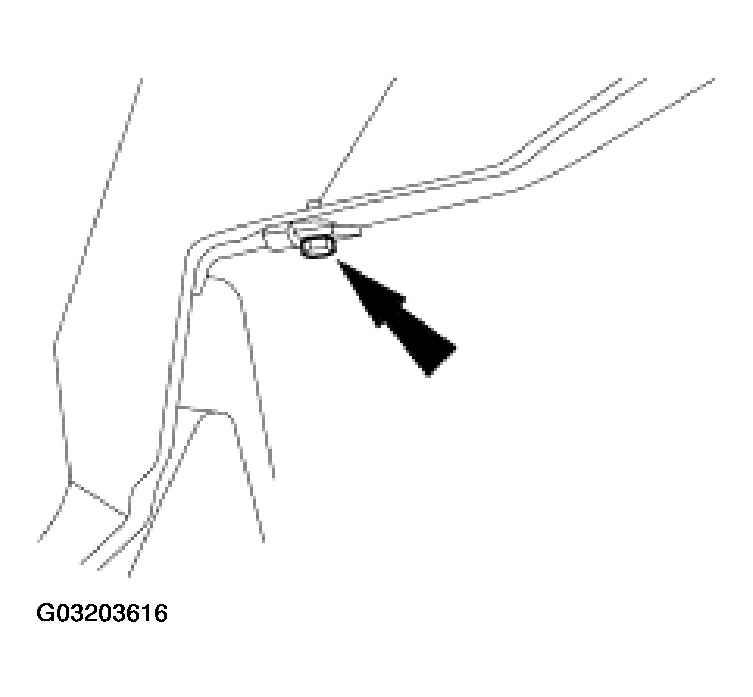

   Fig 5: Removing Rear Bumper Cover Nuts

   Courtesy of FORD MOTOR CO.
5. From inside the luggage compartment, remove the five rear bumper cover nuts.
NOTE: LH shown, RH similar.

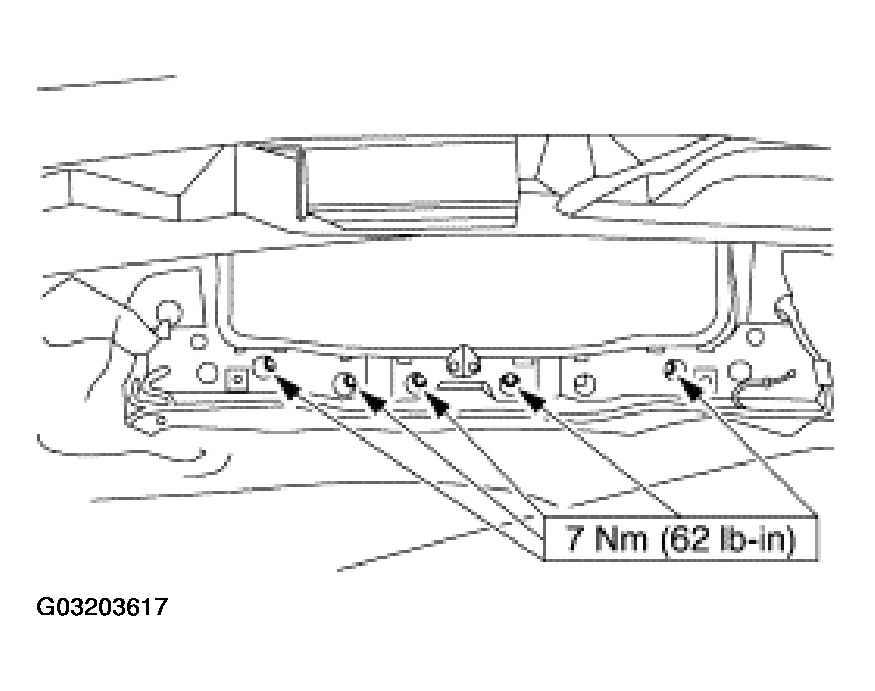

Fig 6: Removing Rear Bumper Cover Nuts
Courtesy of FORD MOTOR CO.
6. From inside the luggage compartment, remove the six rear bumper cover nuts (three on each side).
7. Disconnect the electrical connector.

Item 9: Rear Bumper Beam Removal Note

1. Remove the exhaust hanger bracket.
   1. Remove the bolt.
   2. Remove the bracket.

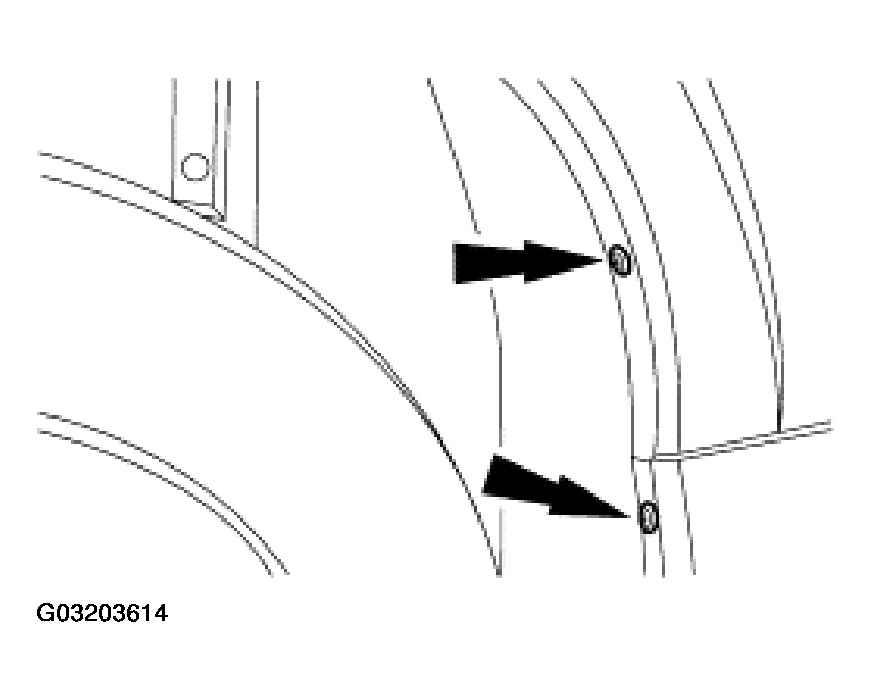

      Fig 7: Removing Exhaust Hanger Bracket

      Courtesy of FORD MOTOR CO.
