Door Check Arm

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door trim panel. For additional information, refer to INTERIOR TRIM - LS .
Remove the components in the order listed in the following illustration and table.

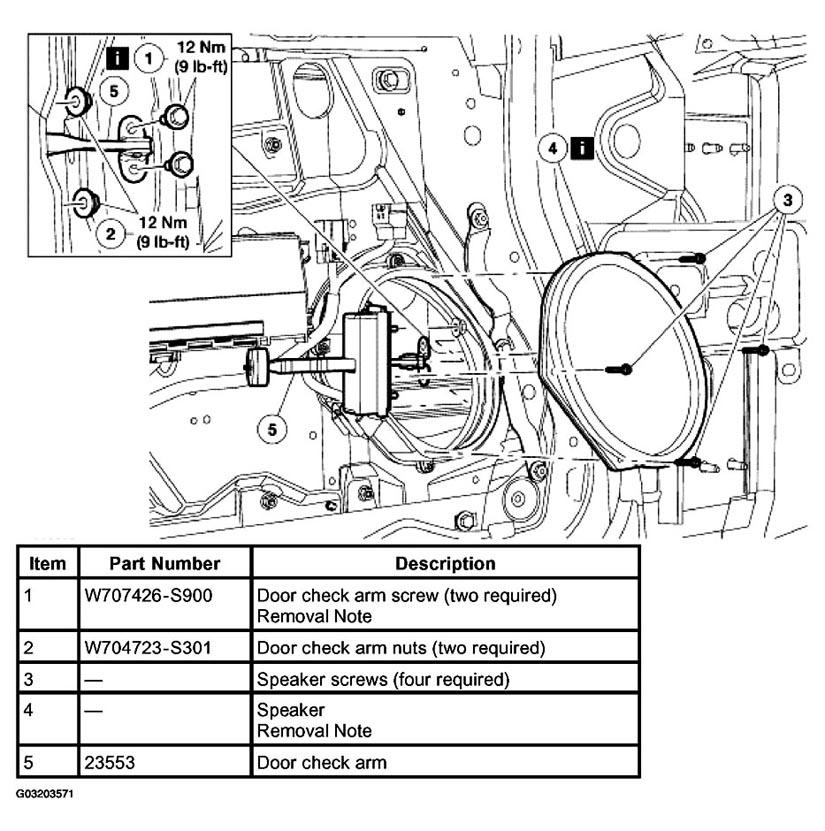

Fig 1: Removing Door Check Arm Components
Courtesy of FORD MOTOR CO.
Install in the reverse order of removal.

Item 1: Door Check Arm Screw Removal Note

Do not close the door after the door check screws have been removed.

Item 4: Speaker Removal Note

Position the speaker aside.
Through the speaker opening remove the door check assembly.
