Striker Adjustment

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the door latch striker bolts.

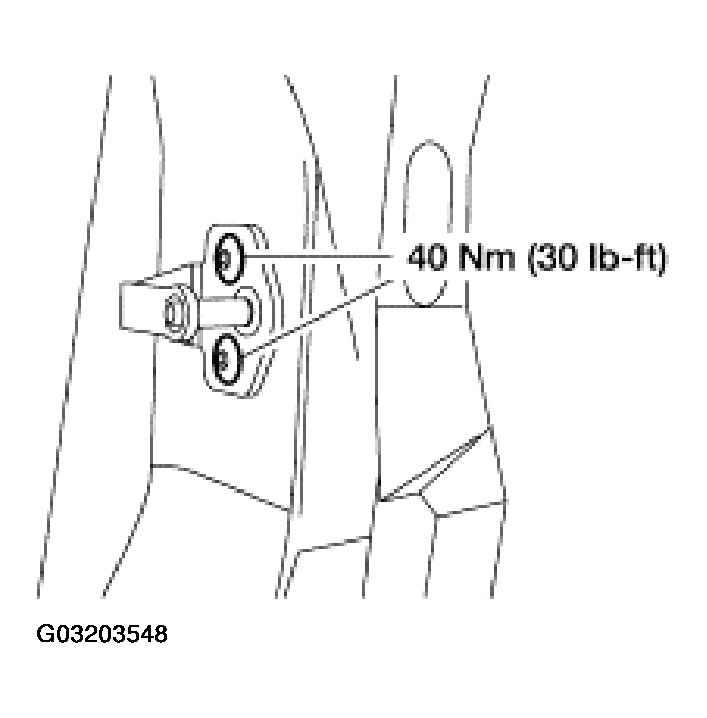

    Fig 1: Loosening Door Latch Striker Bolts
    G03203548Courtesy of FORD MOTOR CO.
  2. Adjust the door latch striker plate from side to side or up and down as necessary.

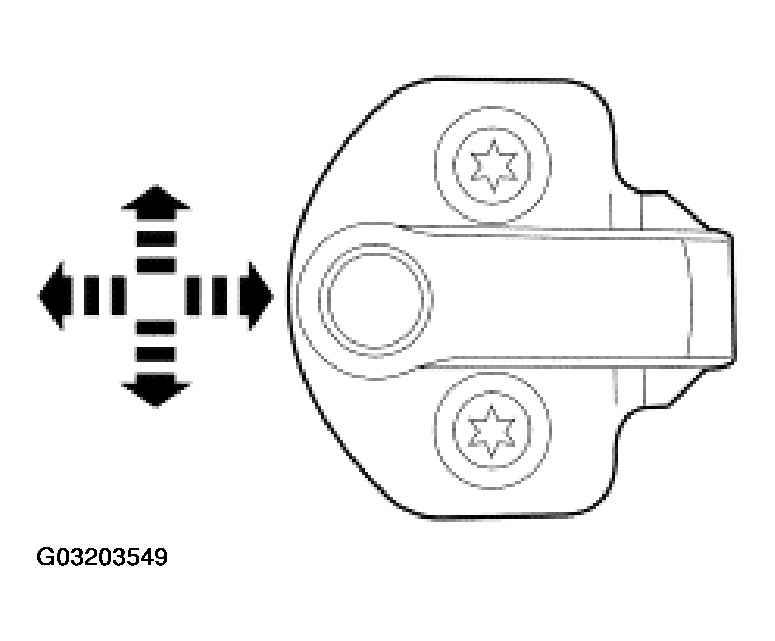

    Fig 2: Adjusting Door Latch Striker Plate
    G03203549Courtesy of FORD MOTOR CO.
  3. Tighten the door latch striker plate bolts.
    Fig 3: Tightening Door Latch Striker Plate Bolts
    G03203550Courtesy of FORD MOTOR CO.
