Front and Rear Door

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the door latch striker plate.

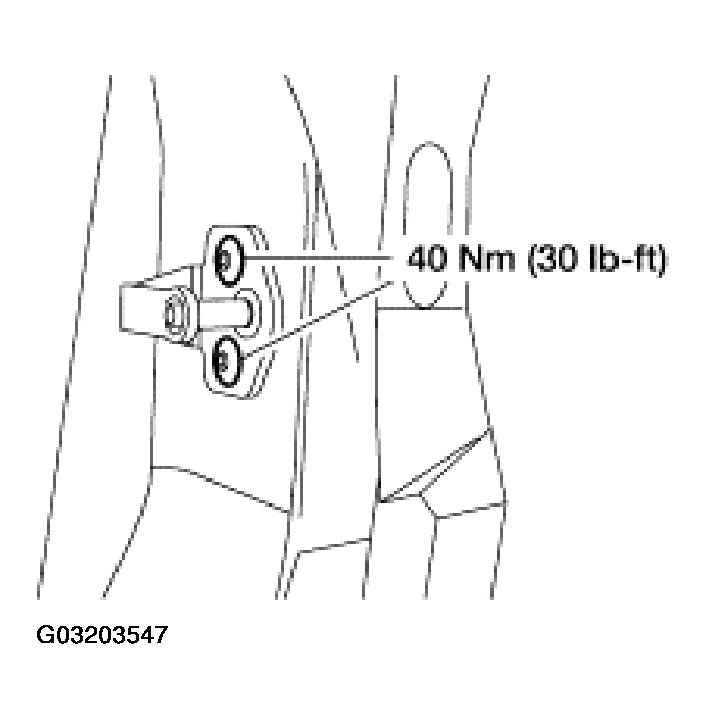

Fig 1: Loosening Door Latch Striker Plate
Courtesy of FORD MOTOR CO.

Front Door Horizontal and Vertical Adjustment

Loosen the front door hinge-to-front door bolts.

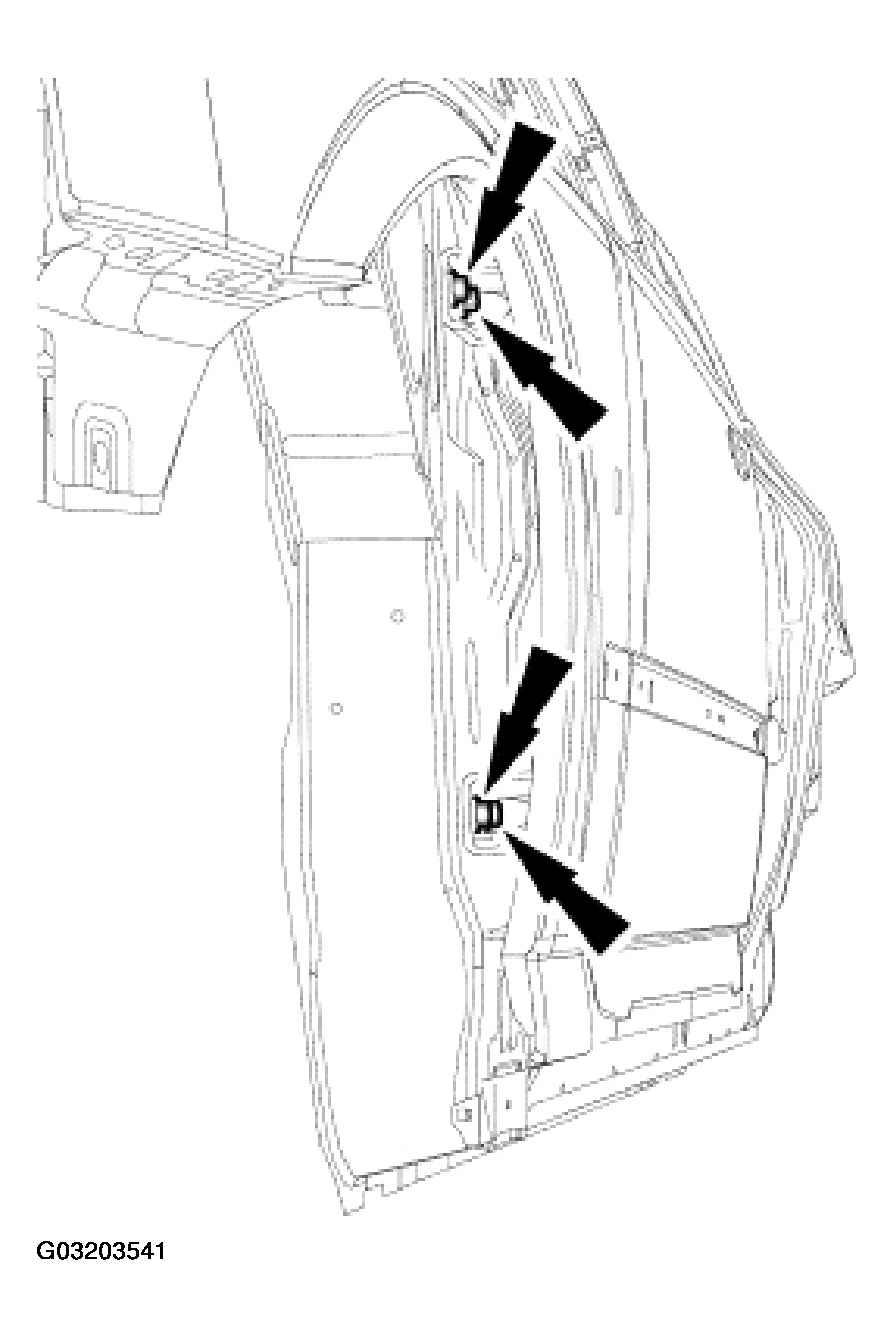

Fig 2: Loosening Front Door Hinge-To-Front Door Bolts
Courtesy of FORD MOTOR CO.
Adjust the front door.
Tighten the front door hinge-to-front door bolts.

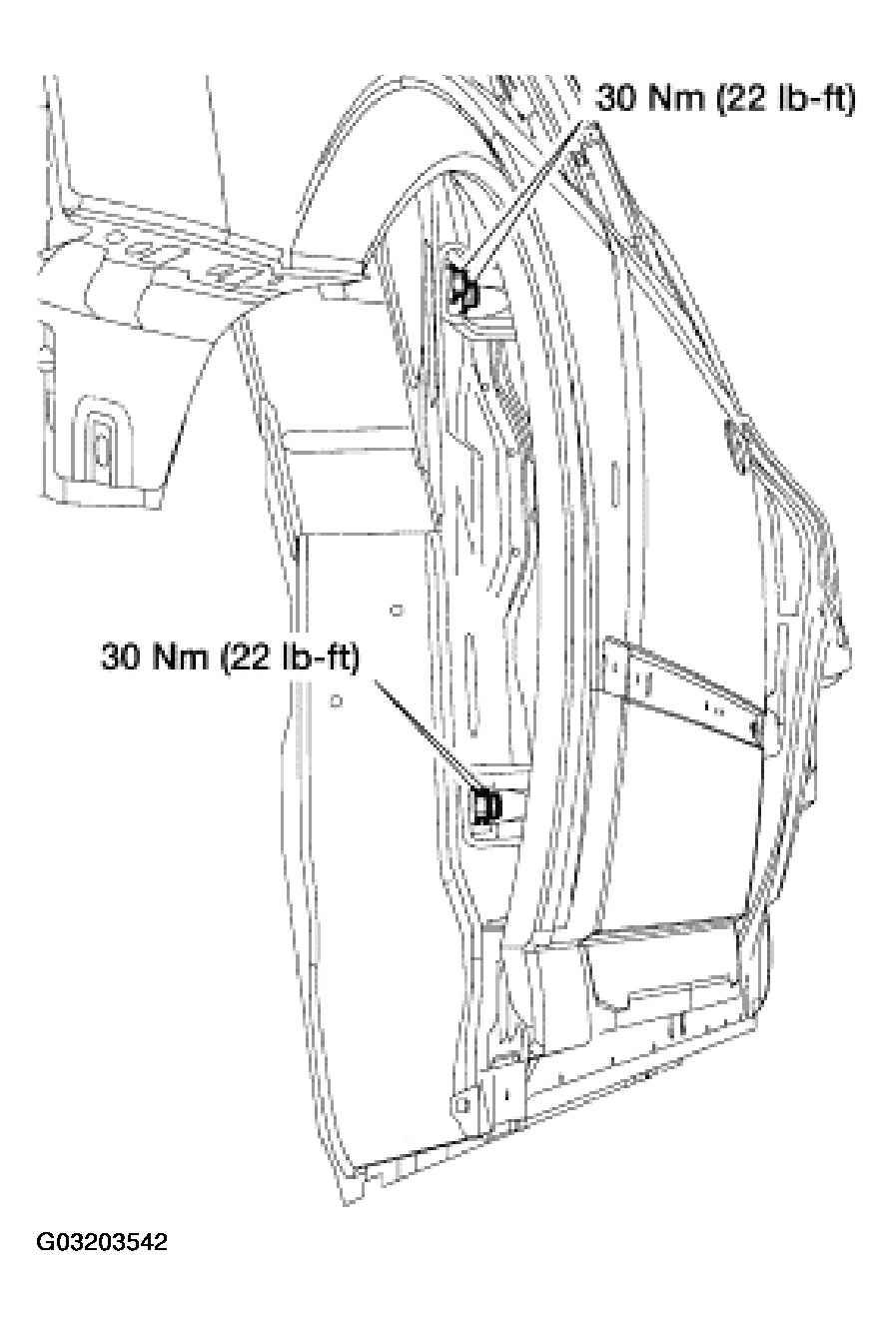

Fig 3: Tightening Front Door Hinge-To-Front Door Bolts
Courtesy of FORD MOTOR CO.

Front Door Fore and Aft Adjustment

Remove the insulator panel. For additional information, refer to FENDER .
Loosen the door hinge-to-body bolts.

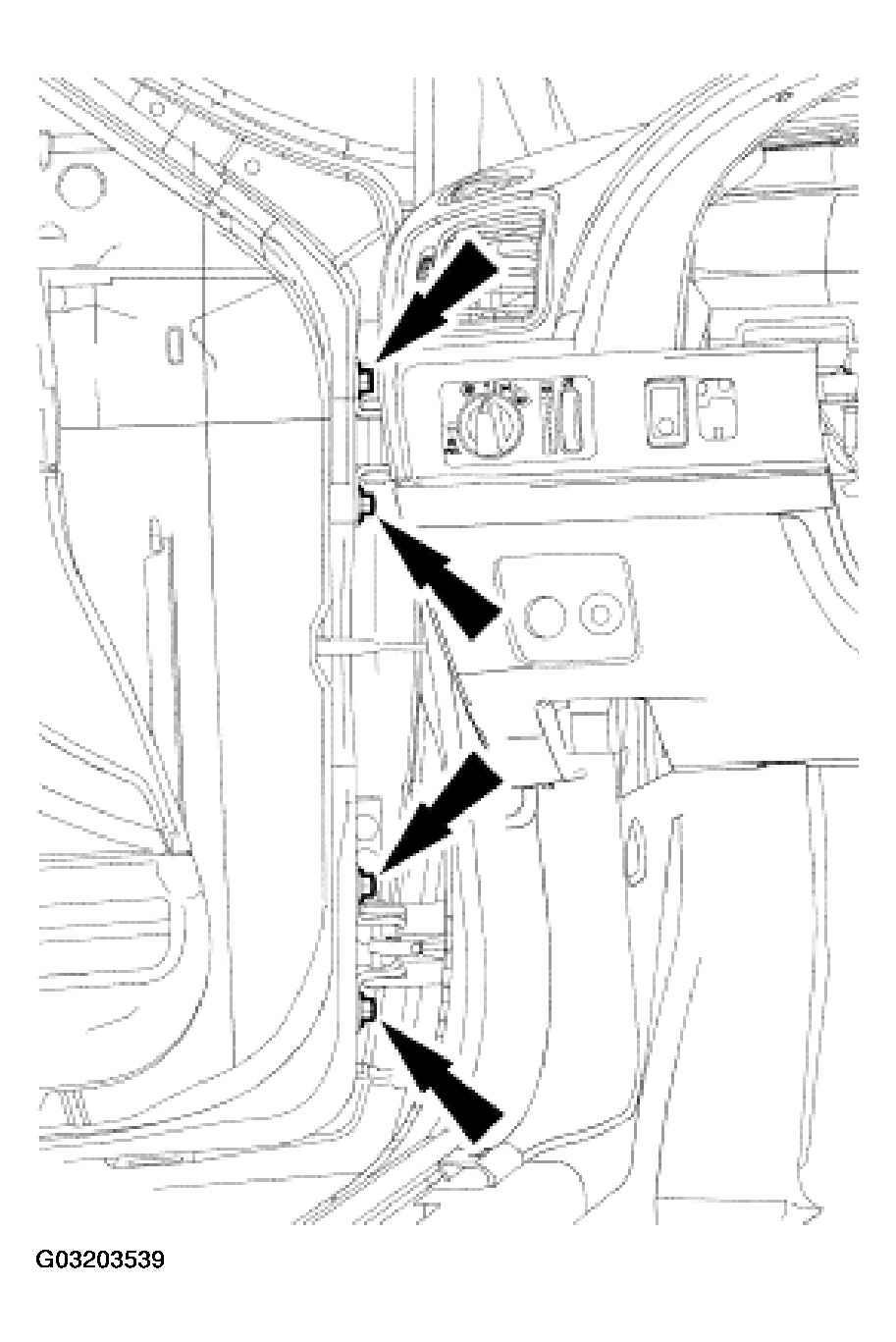

Fig 4: Loosening Door Hinge-To-Body Bolts
Courtesy of FORD MOTOR CO.
Adjust the front door.
Tighten the front door hinge-to-body bolts.

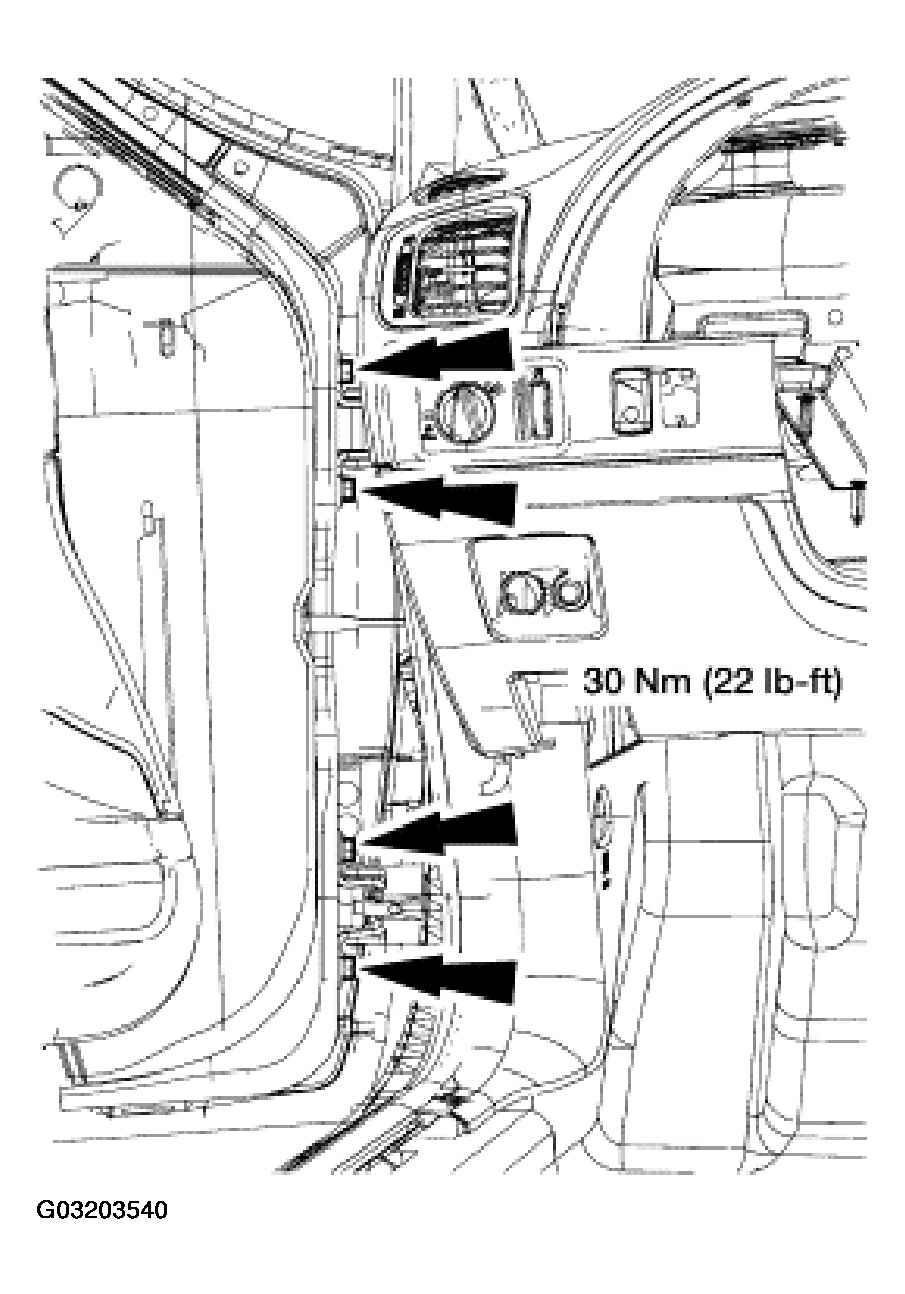

Fig 5: Tightening Front Door Hinge-To-Body Bolts
Courtesy of FORD MOTOR CO.

Rear Door Horizontal and Vertical Adjustment

Loosen the rear door hinge to rear door bolts.

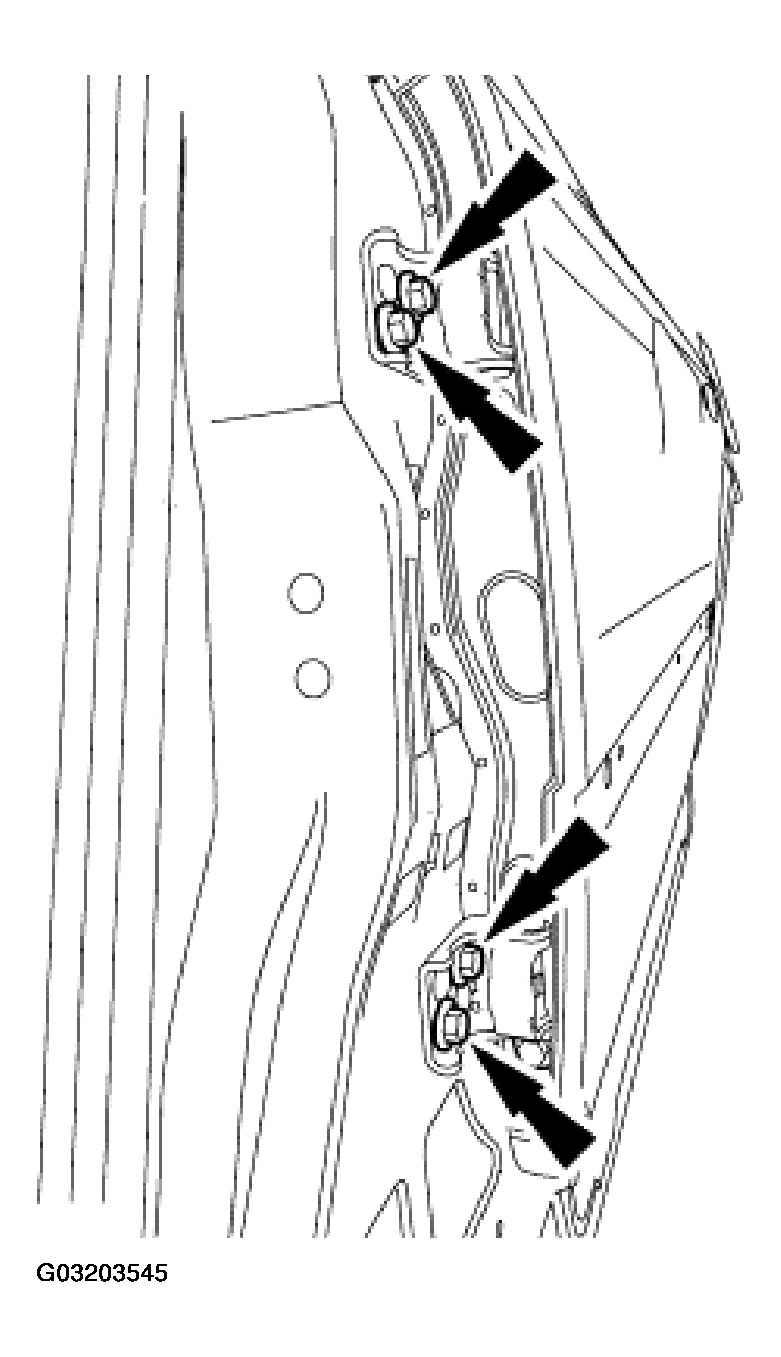

Fig 6: Loosening Rear Door Hinge To Rear Door Bolts
Courtesy of FORD MOTOR CO.
Adjust the rear door.
Tighten the rear door hinge-to-rear door bolts.

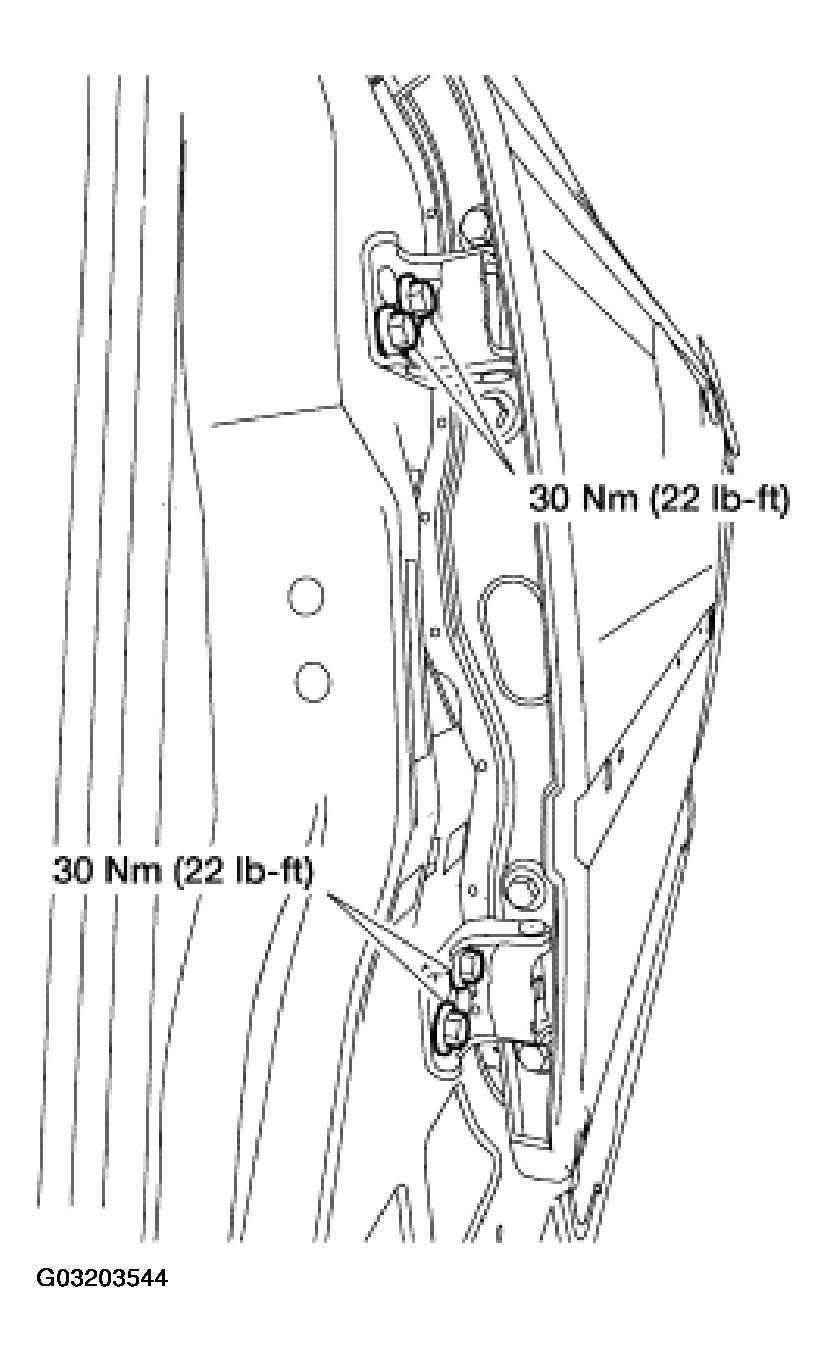

Fig 7: Tightening Rear Door Hinge-To-Rear Door Bolts
Courtesy of FORD MOTOR CO.

Rear Door Fore and Aft Adjustment

Loosen the rear door hinge-to-body bolts.

Fig 8: Loosening Rear Door Hinge-To-Body Bolts
Courtesy of FORD MOTOR CO.
Adjust the rear door.
Tighten the rear door hinge-to-body bolts.

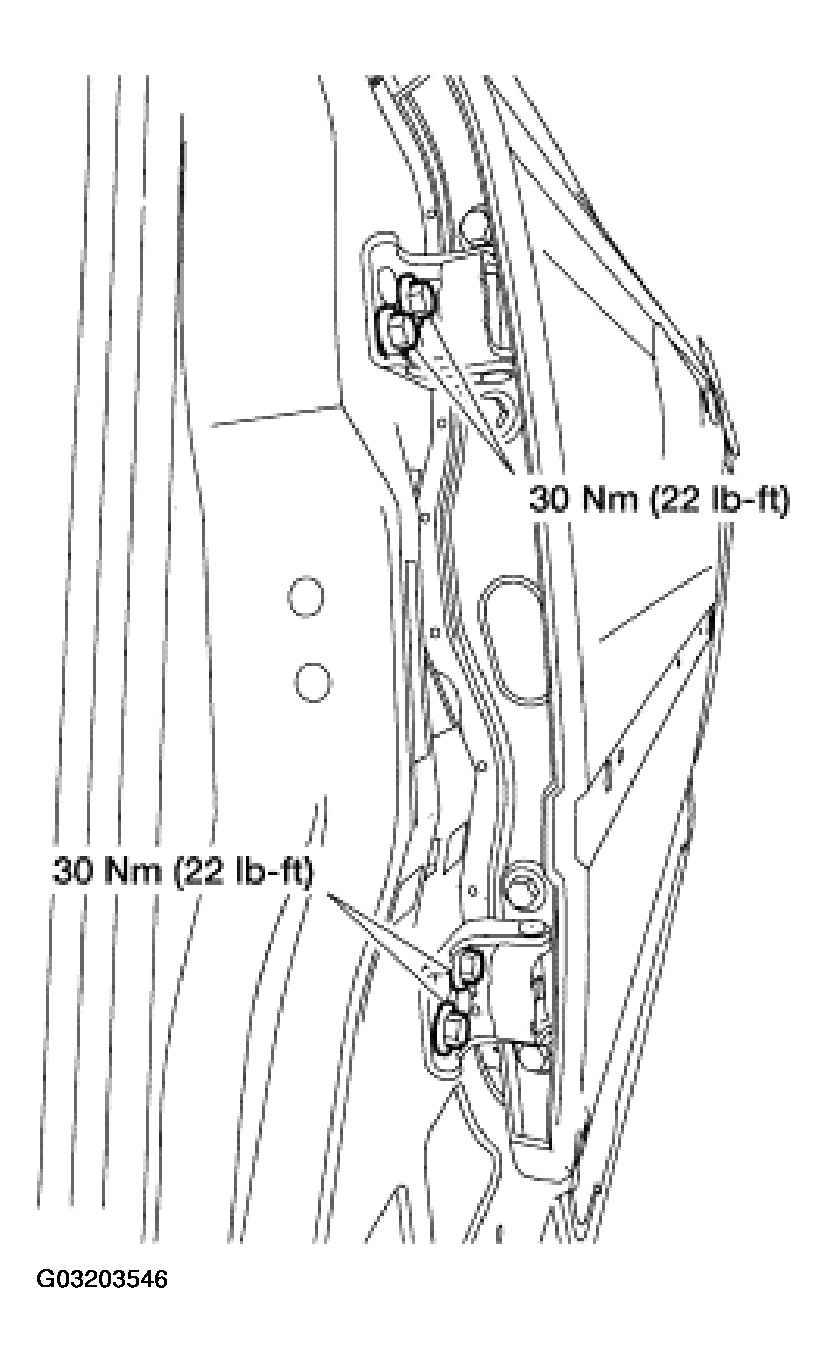

Fig 9: Tightening Rear Door Hinge-To-Body Bolts
Courtesy of FORD MOTOR CO.

Front and Rear Door

Tighten the door latch striker plate.

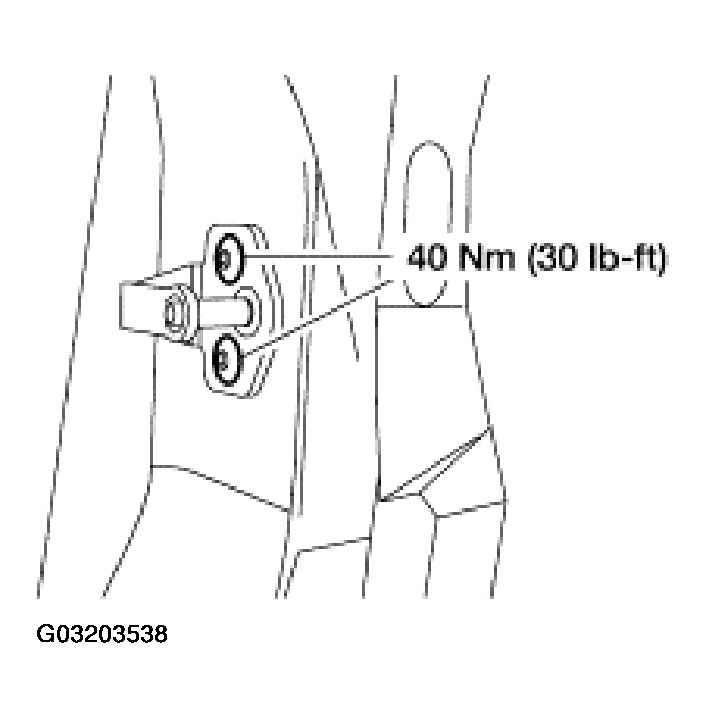

Fig 10: Tightening Door Latch Striker Plate
Courtesy of FORD MOTOR CO.
