Roof Opening Panel

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

If removing the roof opening panel assembly, remove the headliner. For additional information, refer to HEADLINER .
If removing the roof opening panel wiring harness or the roof opening panel motor and module, remove the overhead console. For additional information, refer to HEADLINER .

To remove individual components, only carry out the listed steps.

COMPONENT STEPS

Component	Steps
Roof opening panel assembly	1-4
Roof opening panel glass	5, 6
Roof opening panel wiring harness	9
Roof opening panel motor and module	7-9

Remove the components in the order indicated in the following illustration and table.

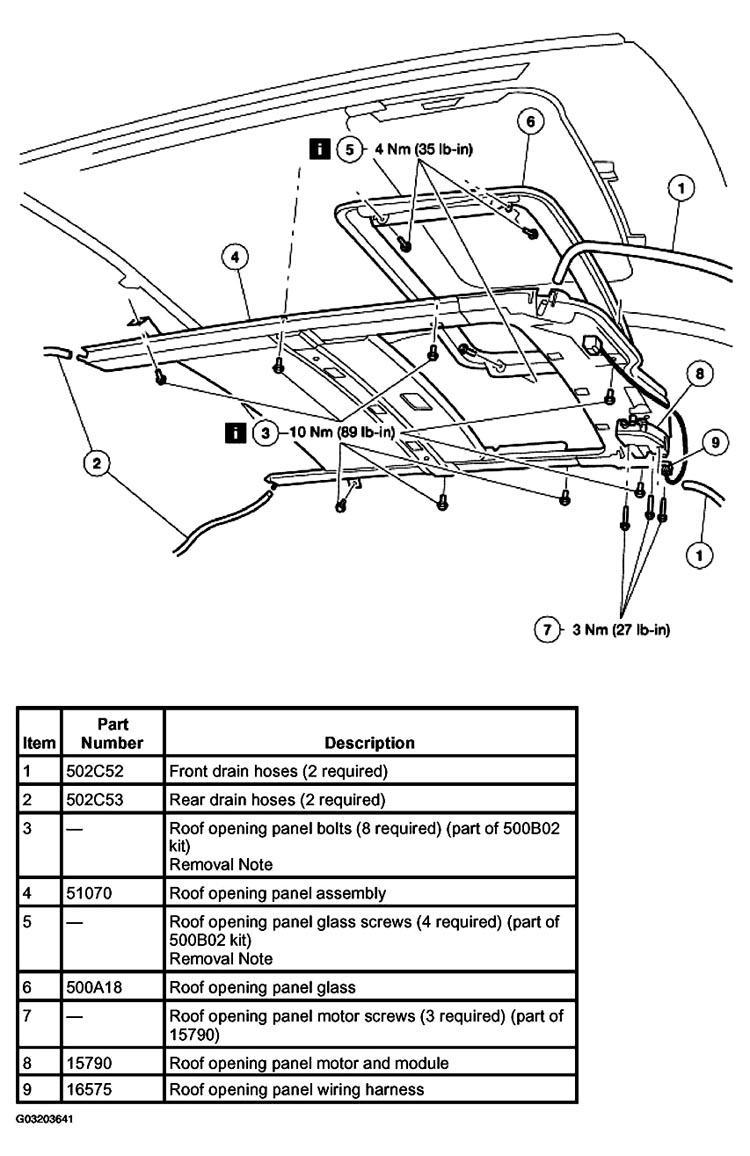

Fig 1: Identifying Roof Opening Panel Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 3: Roof Opening Panel Bolts Removal Note

An assistant is required to carry out this procedure.

Item 5: Roof Opening Panel Glass Screws Removal Note

Move the roof opening panel to the vent position to access the screws.
