Removal And Installation: Headliner: Material

1. Remove both front seats. For additional information, refer to SEATING .
2. Disconnect the interior mirror electrical connector.
3. If equipped, remove the rain sensor cover and disconnect the electrical connector.
4. Remove the windshield side garnish panels. For additional information, refer to INTERIOR TRIM PANELS .
5. Remove the upper B-pillar trim panels. For additional information, refer to INTERIOR TRIM PANELS .
6. Position the quarter trim panels aside.

   To remove individual parts, only carry out the listed steps:

   PART STEPS SPECIFICATION



   Part	Steps
   Overhead console	3
   Sunvisor	5-7
   Passenger assist handle	8-10

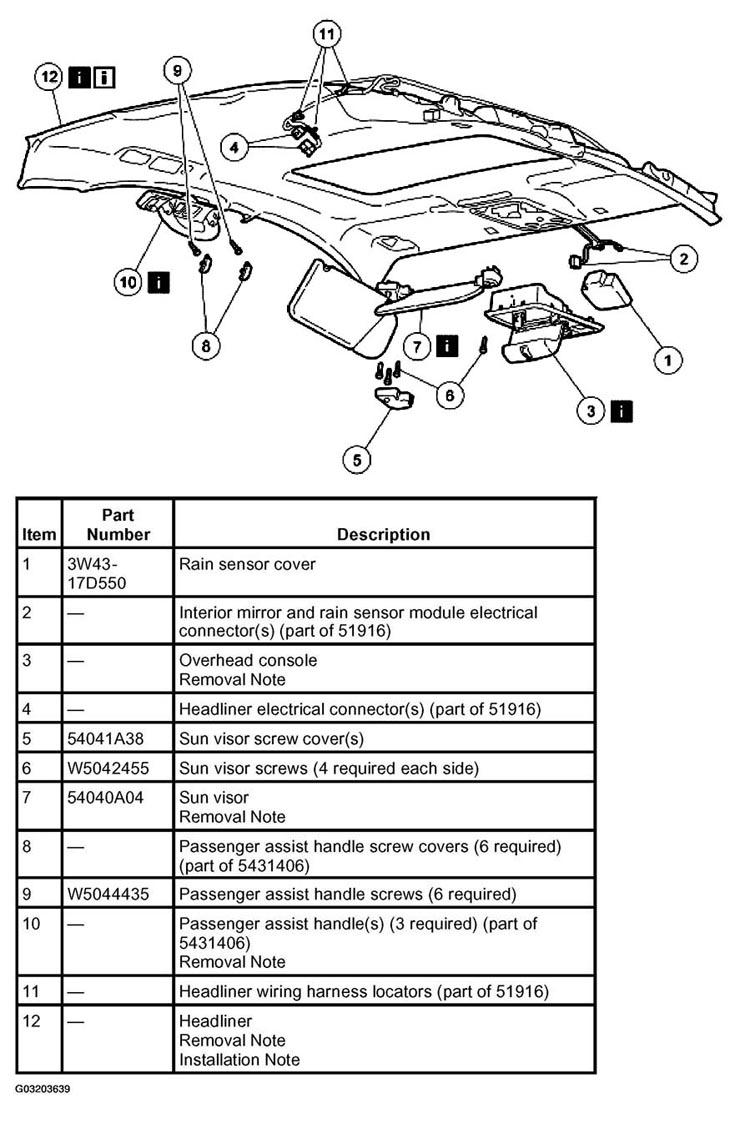

7. Remove the parts in the order indicated in the following illustration and table.
   Fig 1: Identifying Interior Mirror And Rain Sensor Module Electrical Connector

   Courtesy of FORD MOTOR CO.
8. To install, reverse the removal procedure.

Item 3: Overhead Console Removal Note

1. Disconnect the electrical connectors.

Item 7: Sun Visor Removal Note

1. Disconnect the electrical connectors.

Item 10: Passenger Assist Handle Removal Note

1. If required, disconnect the electrical connector(s).

Item 12: Headliner Removal Note

1. For vehicles without a roof opening panel, use a plastic scraper to detach the headliner from the roof.

Item 12: Headliner Installation Note

1. Carefully position the headliner in the vehicle.
NOTE: Adhesive is required for vehicles without a roof opening panel.

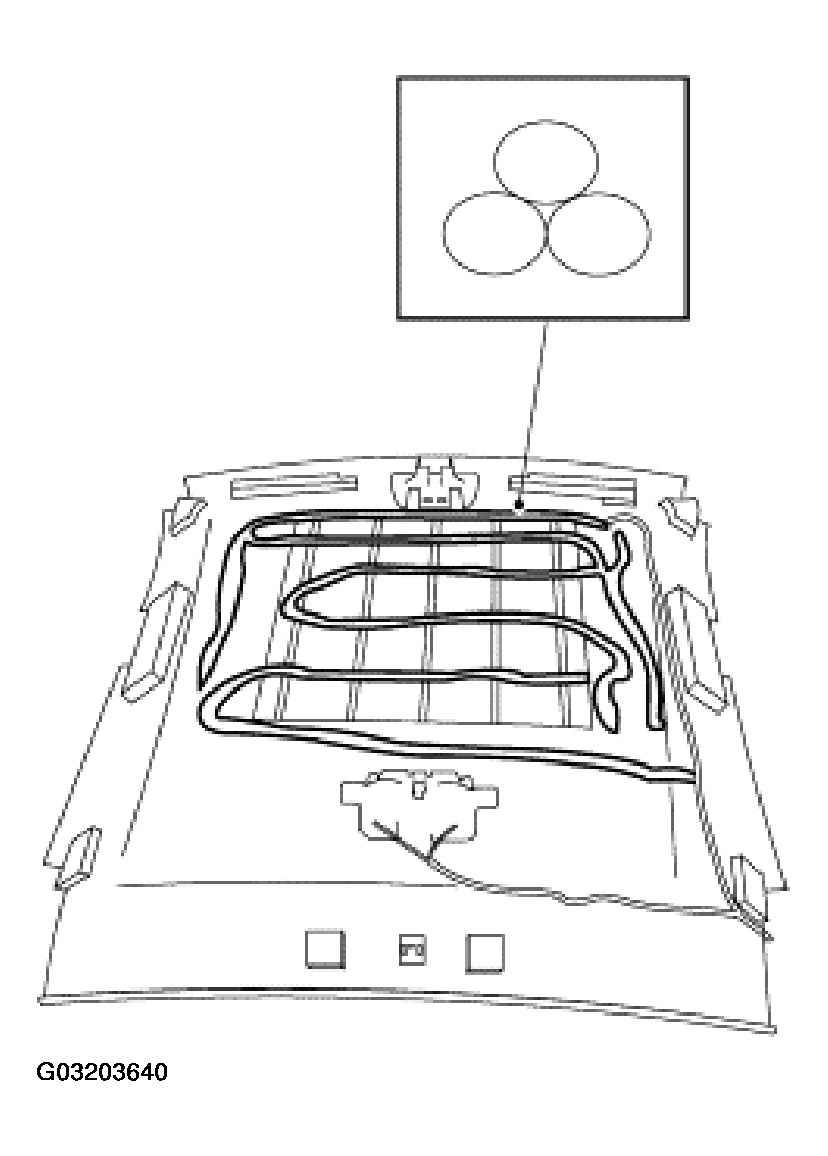

Fig 2: Applying Headliner Adhesive In Triangular Pattern To Center Of Headliner
Courtesy of FORD MOTOR CO.
2. Apply headliner adhesive in a triangular pattern to the center of the headliner.
