Front Door Trim Panel

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery.

To remove individual components only, carry out the listed steps.

COMPONENT STEPS

Component	Steps
Door trim panel	1-7
Garnish molding	1-8
Speaker cover	1-9
Applique	1-11

Remove the components in the order indicated in the following illustration and table.

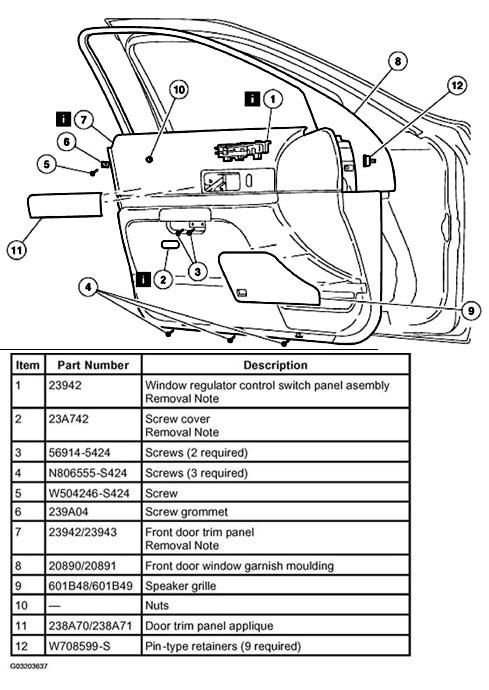

Fig 1: Identifying Window Regulator Control Switch Panel Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 1: Window Regulator Control Switch Panel Removal Note

Disconnect the electrical connectors.

Item 2: Screw Cover Removal Note

From the top of the cover on center, use a suitable tool, insert 2-3 mm and rotate to disengage the snap feature.

Item 7: Front Door Trim Panel Removal Note

Disconnect the door lock control switch electrical connector.
If equipped, disconnect the driver seat memory switch electrical connector.
