Roof Opening Panel Drive Cables and Guide Rails

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the roof opening panel. Refer to ROOF OPENING PANEL for additional information.

To disassemble individual components only, carry out the following steps.

COMPONENT STEPS

Component	Steps
Roof opening panel shield	1-6
Roof opening panel	3, 4
Roof opening panel trough	3-5
Lifting arm	1-11

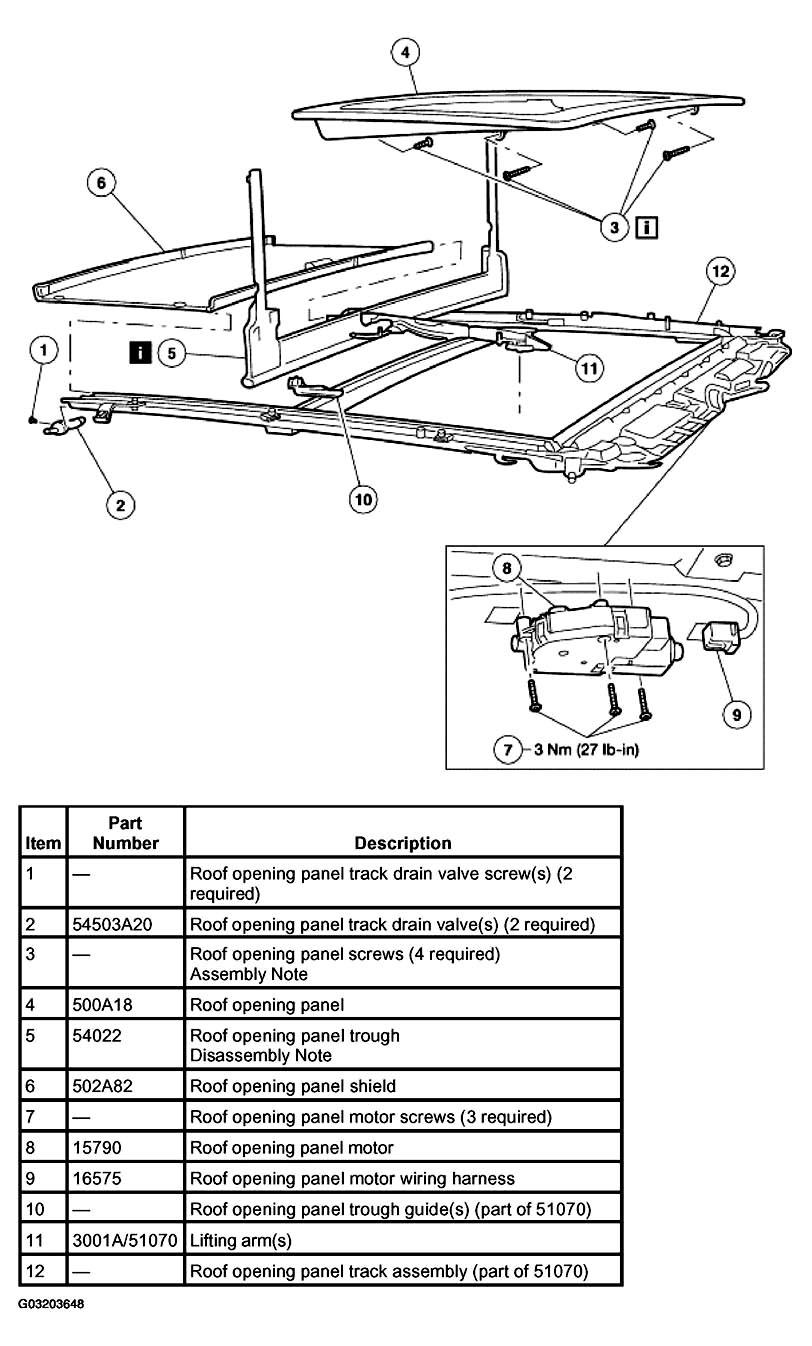

Disassemble the components in the order indicated in the following illustration and table.

Fig 1: Identifying Roof Opening Panel Track Drain Valve Screw
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.

Item 5: Roof Opening Panel Trough Disassembly Note

Unsnap the trough arms.
Rotate the trough 90° and lift it from its guide.

Item 3: Roof Opening Panel Screws Assembly Note

The glass panel will be adjusted during the roof opening panel installation. Do not tighten the screws to allow for movement of the glass panel during the adjustment procedure. After the adjustment procedure has been completed, tighten the screws to the specification provided
