Passive Anti-Theft System (PATS) Transceiver

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery.
Remove the instrument cluster finish panel. For additional information, refer to INTERIOR TRIM .
Remove the components in the order indicated in the illustration and table.

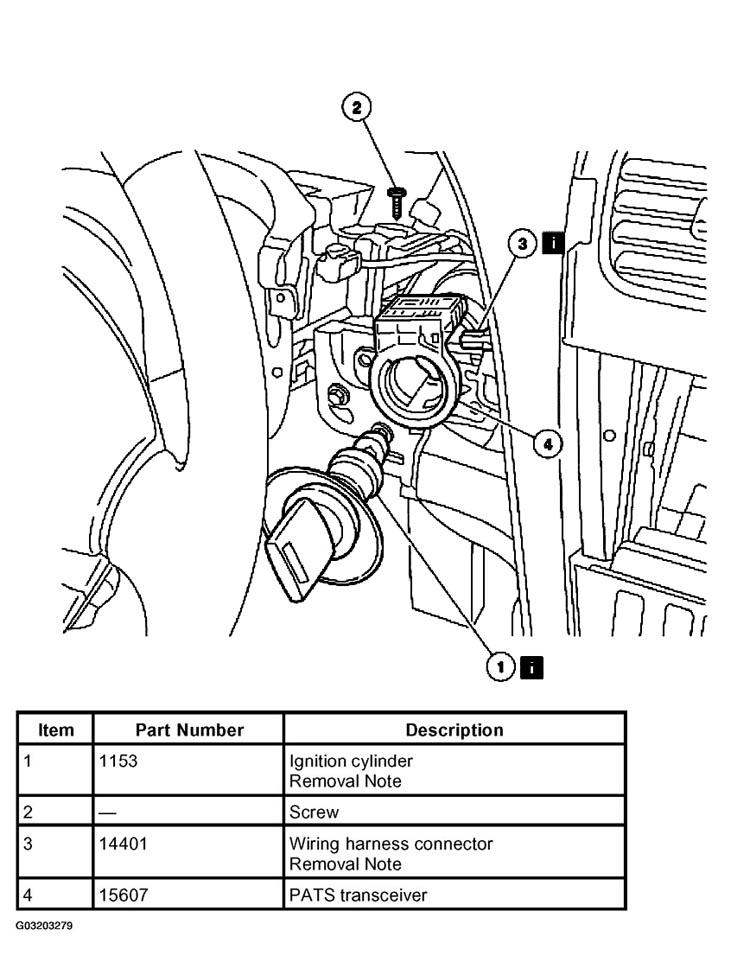

Fig 1: Identifying Removal Order Of Passive Anti-Theft System (PATS) Transceiver
Courtesy of FORD MOTOR CO.
Install in the reverse order of removal.

Item 1: Ignition Cylinder Removal Note

Key in ON position.
Push the tab on the left side of the cylinder housing to release the cylinder.

Item 3: Wiring Harness Connector Removal Note

Position the transceiver ring toward the steering column to access the connector.
