Passive Anti Theft (PATS) C252
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

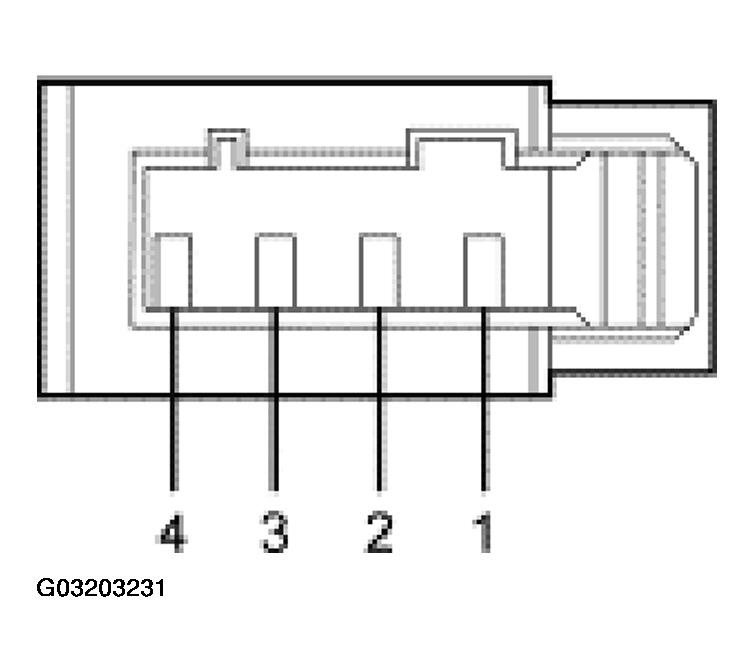

PASSIVE ANTI THEFT (PATS) C252 CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 29S-GL36 (OG/BU) power feed to the PATS transceiver | Greater than 10 volts key ON or OFF. |
| 2 | 31-GL36 (BK) ground for the PATS transceiver | 0 voltage, less than 5 ohms. |
| 3 | 8-GL36 (WH/RD) transmits signal to instrument cluster | 0 voltage, 5 ohms or less between the instrument cluster and the PATS transceiver. Greater than 10,000 ohms to ground with the instrument cluster and the PATS transceiver disconnected. |
| 4 | 10-GL36 (GY/RD) receives signal from instrument cluster | 0 voltage, 5 ohms or less between the instrument cluster and the PATS transceiver. Greater than 10,000 ohms to ground with the instrument cluster and the PATS transceiver disconnected. |
