Instrument Cluster C220a

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

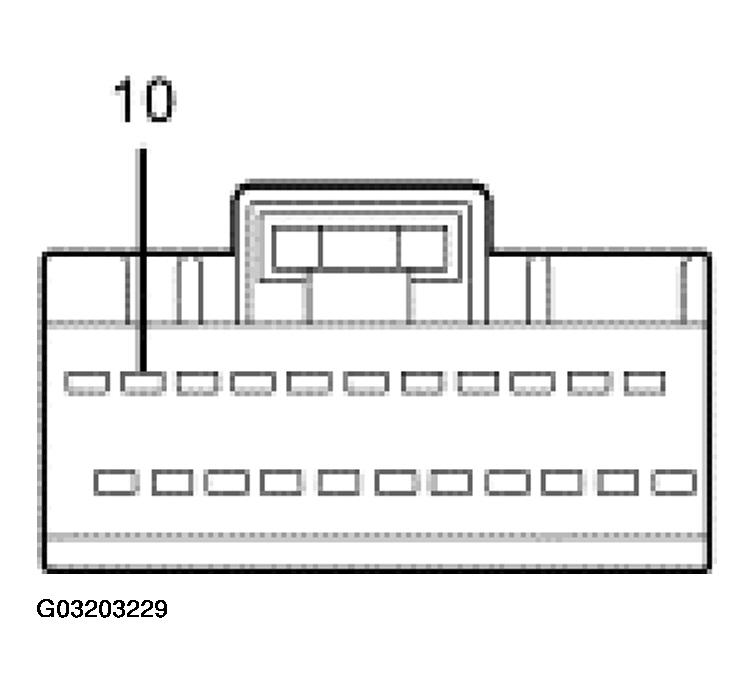

Fig 1: Identifying Instrument Cluster C220A Connector Pinouts
G03203229Courtesy of FORD MOTOR CO.
INSTRUMENT CLUSTER C220A CONNECTOR PINOUTS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
10 10-GL6 (GY/VT) transmits signal to anti-theft LED 0 voltage, 5 ohms or less between the instrument cluster and the anti-theft LED. Greater than 10,000 ohms to ground with the instrument cluster and the anti-theft LED disconnected.
