Autolamp Sensor C286
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

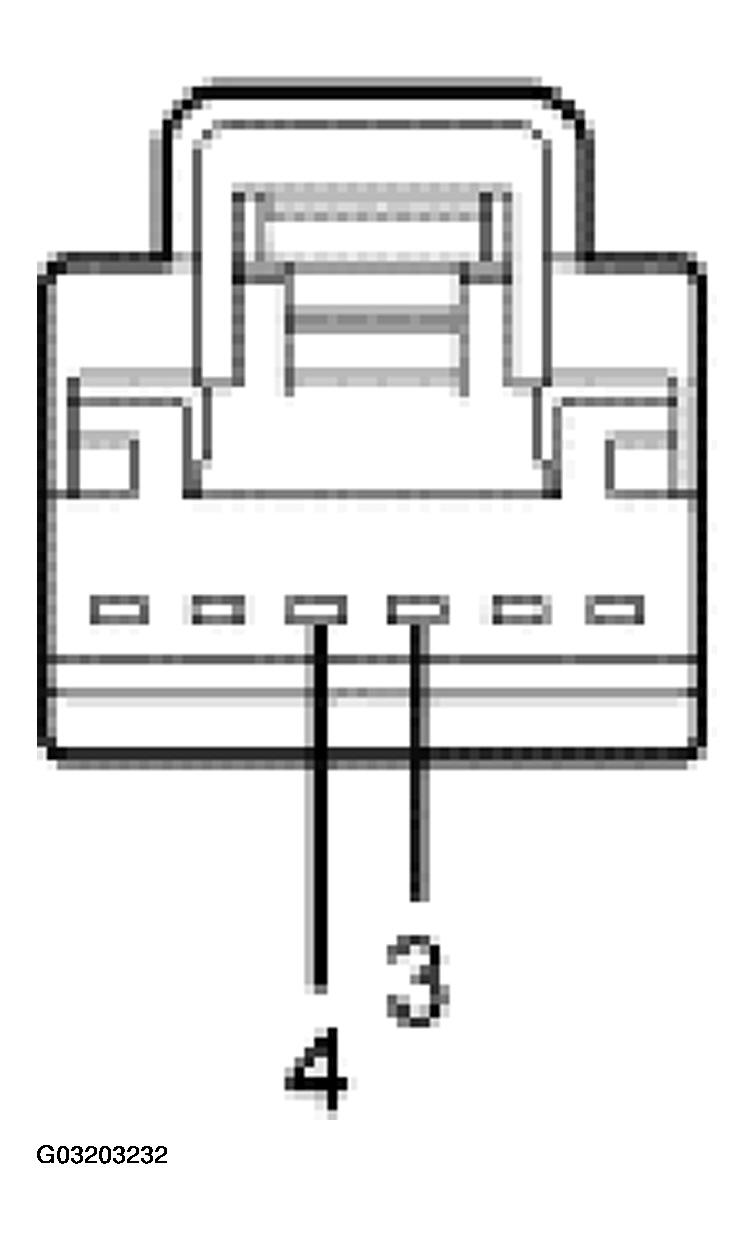

AUTOLAMP SENSOR C286 CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 29-GL6 (OG) autolamp sensor power | 12 volts, 5 ohms or less between the autolamp sensor and the central junction box. Greater than 10,000 ohms to ground with the instrument cluster and the autolamp sensor disconnected. |
| 4 | 10-GL6 (GY/VT) receives signal from instrument cluster | 0 voltage, 5 ohms or less between the autolamp sensor and the instrument cluster. Greater than 10,000 ohms to ground with the instrument cluster and the autolamp sensor disconnected. |
