Luggage Compartment Lid Disarm Switch C483: Notes
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

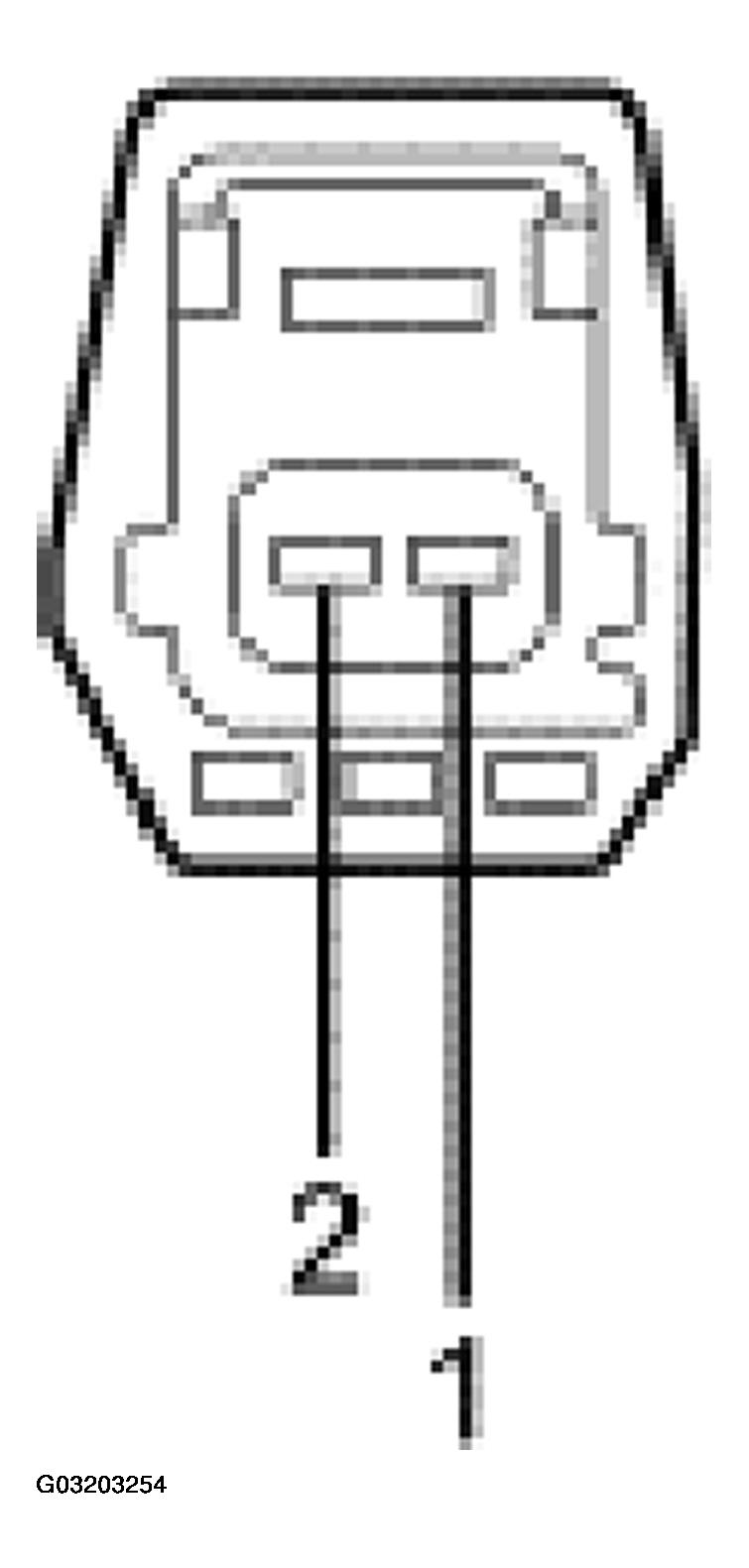

LUGGAGE COMPARTMENT LID DISARM SWITCH C483 CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 31-GL27 (BK/OG) ground circuit for the luggage compartment switch | 0 voltage, less than 5 ohms to ground with luggage compartment lid disarm switch disconnected. |
| 2 | 8-GL27 (WH/BU) signal feed from the luggage compartment switch to the REM | Less than 5 ohms between the luggage compartment lid switch and the REM, greater than 10,000 ohms to ground with the REM and the luggage compartment switch disconnected. |
