DDM C501c

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

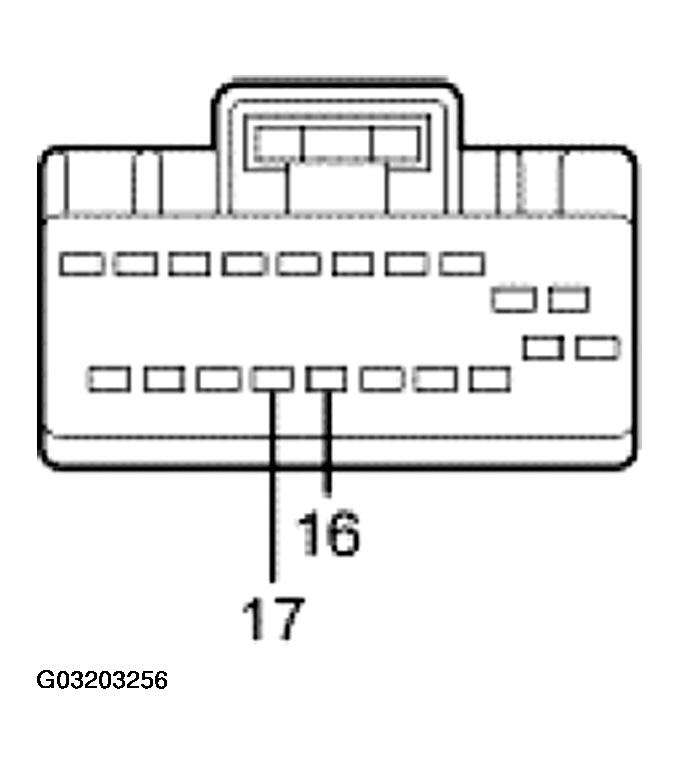

Fig 1: Identifying DDM C501C Connector Pinouts
G03203256Courtesy of FORD MOTOR CO.
DDM C501C CONNECTOR PINOUTS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
16 31S-AA78 (BK/BU) driver set circuit Less than 5 ohms between the driver door latch and the DDM, greater than 10,000 ohms to ground with the DDM and the driver door latch disconnected.
17 31S-AA79(BK/WH) driver reset switch circuit Less than 5 ohms between the driver door latch and the DDM, greater than 10,000 ohms to ground with the DDM and the driver door latch disconnected.
