DDM C501a

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

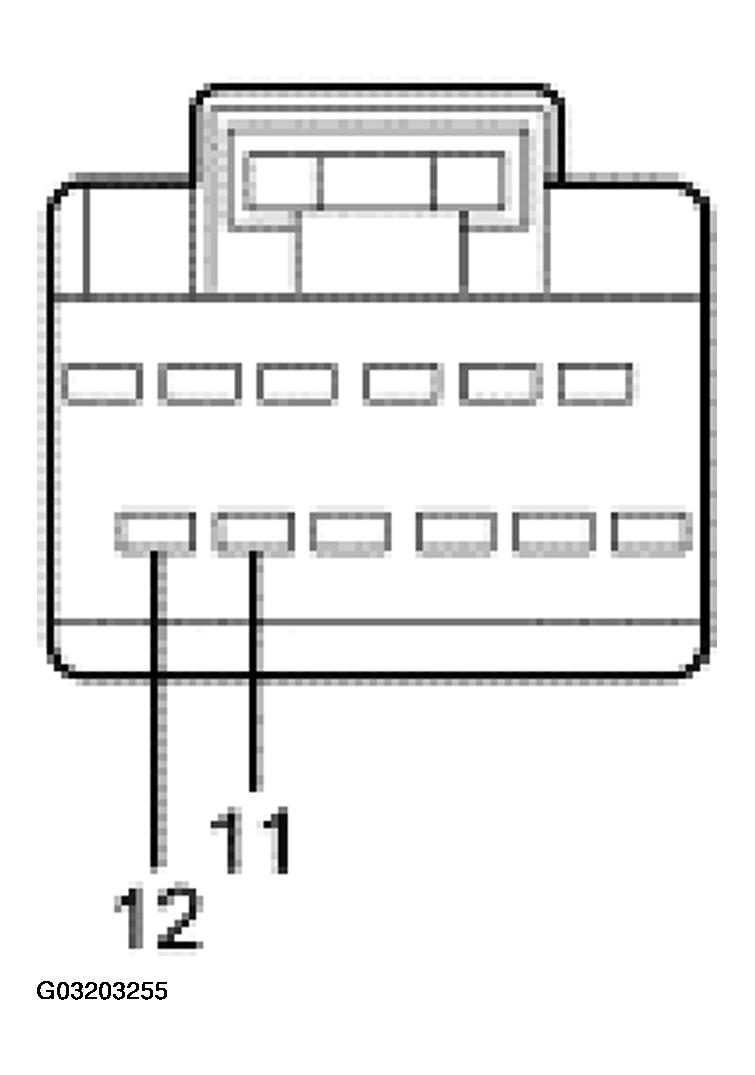

Fig 1: Identifying DDM C501A Connector Pinouts
G03203255Courtesy of FORD MOTOR CO.
DDM C501A CONNECTOR PINOUTS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
11 29-AJ80 (OG) power feed for the DDM 12 volts with key in the ON position, greater than 10,000 ohms to ground with the DDM disconnected.
12 29S-AJ86 (OG/BU) power feed for the DDM 12 volts with key in the ON position, greater than 10,000 ohms to ground with the DDM disconnected.
