Drivers Door Lock Actuator C525: Notes
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

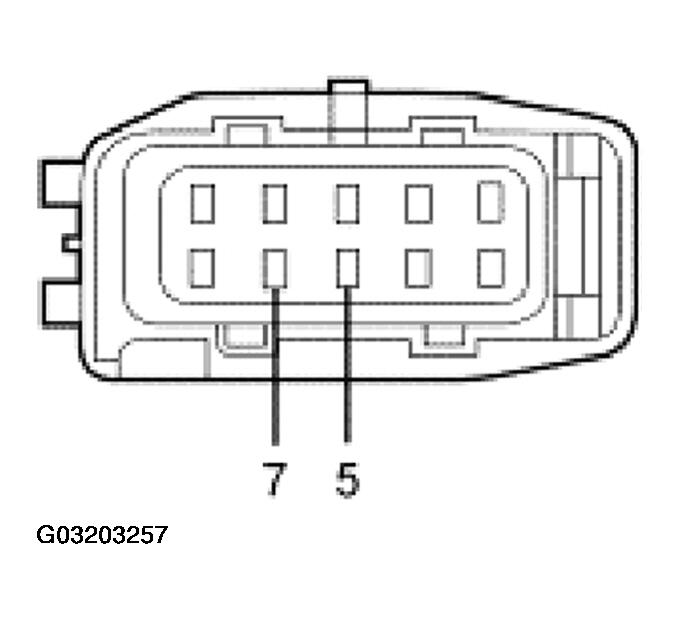

DRIVERS DOOR LOCK ACTUATOR C525 CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 5 | 31S-AA79(BK/WH) driver reset switch circuit | Less than 5 ohms between the driver door latch and the DDM, greater than 10,000 ohms to ground with the DDM and the driver door latch disconnected. |
| 7 | 31S-AA78 (BK/BU) driver set switch circuit | Less than 5 ohms between the driver door latch and the DDM, greater than 10,000 ohms to ground with the DDM and the driver door latch disconnected. |
