REM C420f, C420g

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

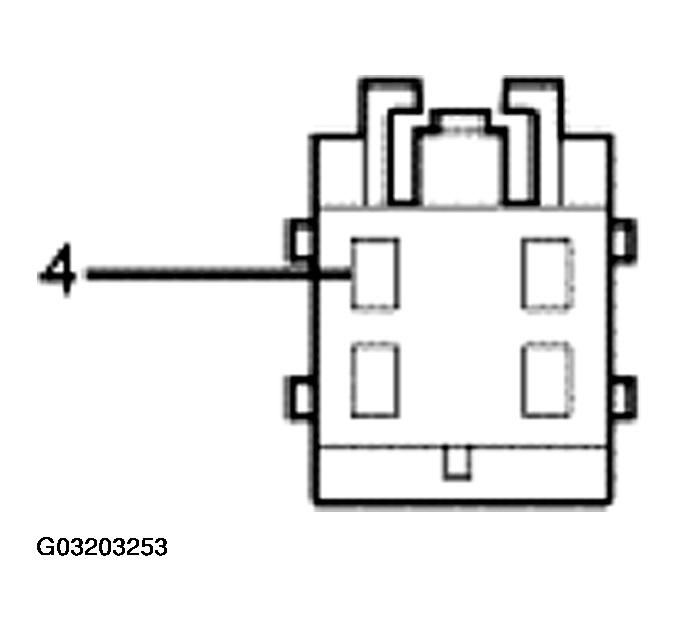

Fig 1: Identifying REM C420F, C420G Connector Pinouts
G03203253Courtesy of FORD MOTOR CO.
REM C420F, C420G CONNECTOR PINOUTS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
4 (C420f) 30-DK30A (BK) power feed to the REM 12 volts with key in the ON position, greater than 10,000 ohms to ground with the REM disconnected.
4 (C420g) 30-DK30 (RD) power feed to the REM 12 volts with key in the ON position, greater than 10,000 ohms to ground with the REM disconnected.
