REM C420d

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

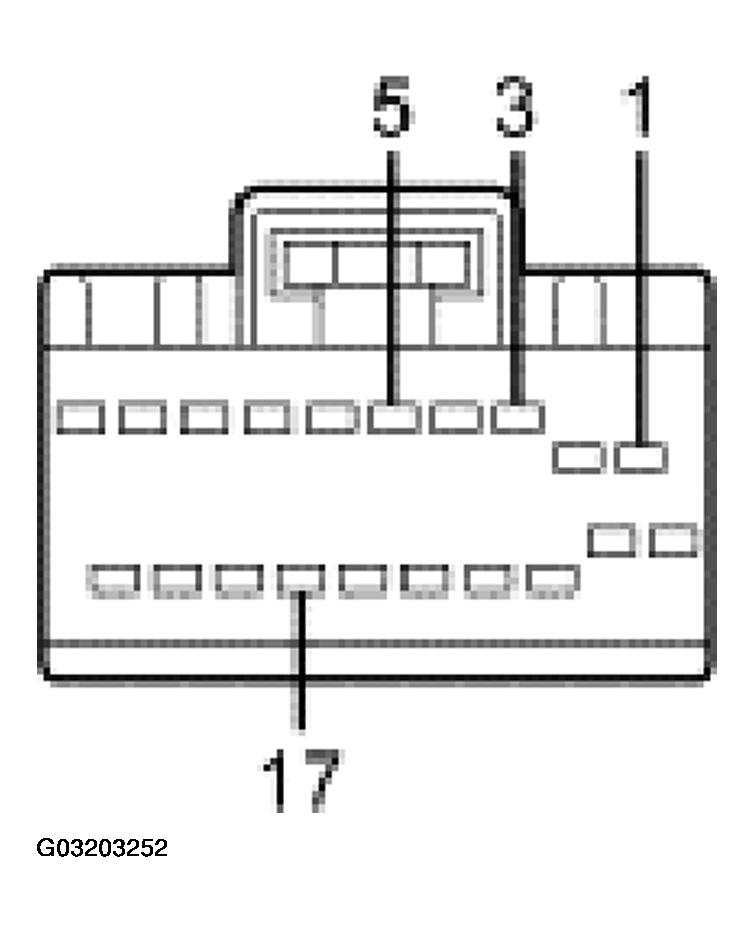

Fig 1: Identifying REM C420D Connector Pinouts
G03203252Courtesy of FORD MOTOR CO.
REM C420D CONNECTOR PINOUTS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 15S-DK32 (GN/RD) power feed to the REM 12 volts with key in the ON position, greater than 10,000 ohms to ground with the REM disconnected.
3 29-DK31 (OG/BK) power feed to the REM 12 volts with key in the ON position, greater than 10,000 ohms to ground with the REM disconnected.
5 91S-GL13 (BN) REM security output to the FEM Less than 5 ohms resistance between REM and FEM with the REM and the FEM disconnected.
17 31S-GL19 (BK/GN) right rear door ajar status circuit Less than 5 ohms between right rear door latch and REM, greater than 10,000 ohms to ground with the REM and the right rear door latch disconnected.
