REM C420b

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

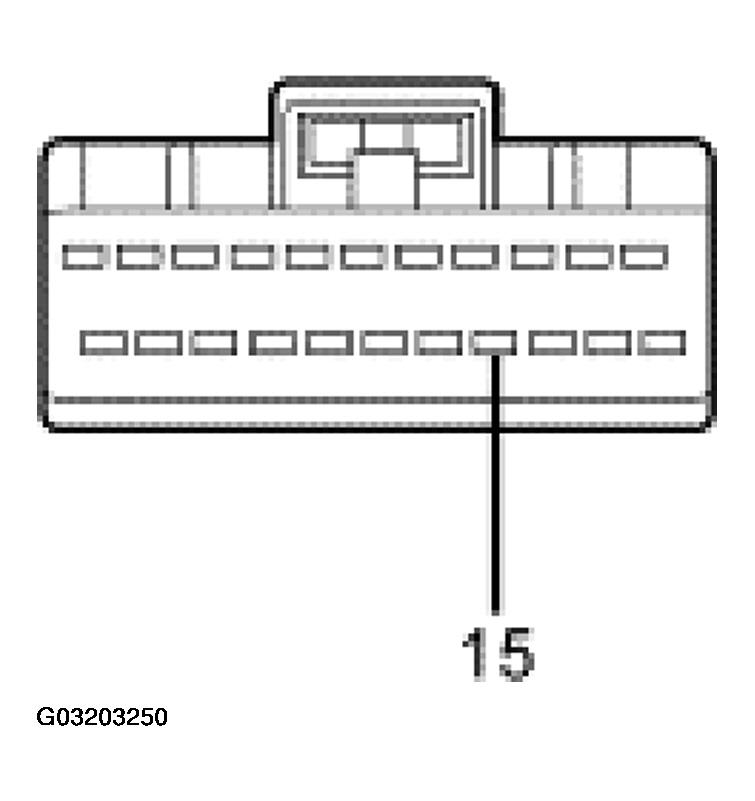

Fig 1: Identifying REM C420B Connector Pinouts
G03203250Courtesy of FORD MOTOR CO.
REM C420B CONNECTOR PINOUTS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
15 8-GL27 (WH/BU) signal feed from the luggage compartment switch to the DDM Less than 5 ohms between the luggage compartment switch and the REM, greater than 10,000 ohms to ground with the REM and the luggage compartment switch disconnected.
