FEM C201f

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

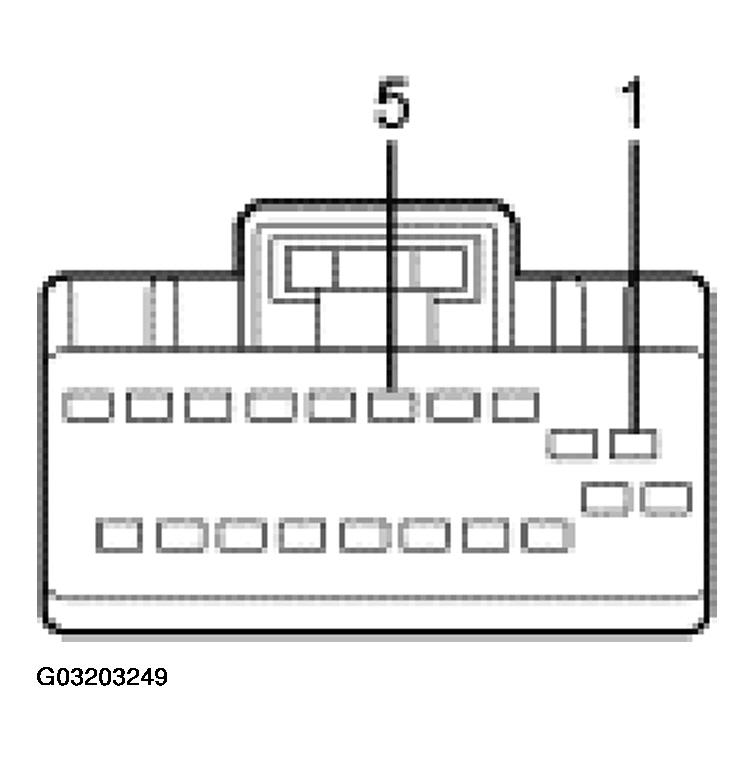

Fig 1: Identifying FEM C201F Connector Pinouts
G03203249Courtesy of FORD MOTOR CO.
FEM C201F CONNECTOR PINOUTS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 29S-DK22 (OG/YE) power feed to the FEM 12 volts with key in the ON position, greater than 10,000 ohms to ground with the FEM disconnected.
5 91S-GL13 (BK/YE) ground circuit for the FEM 0 volts, less than 5 ohms to ground with the FEM disconnected.
