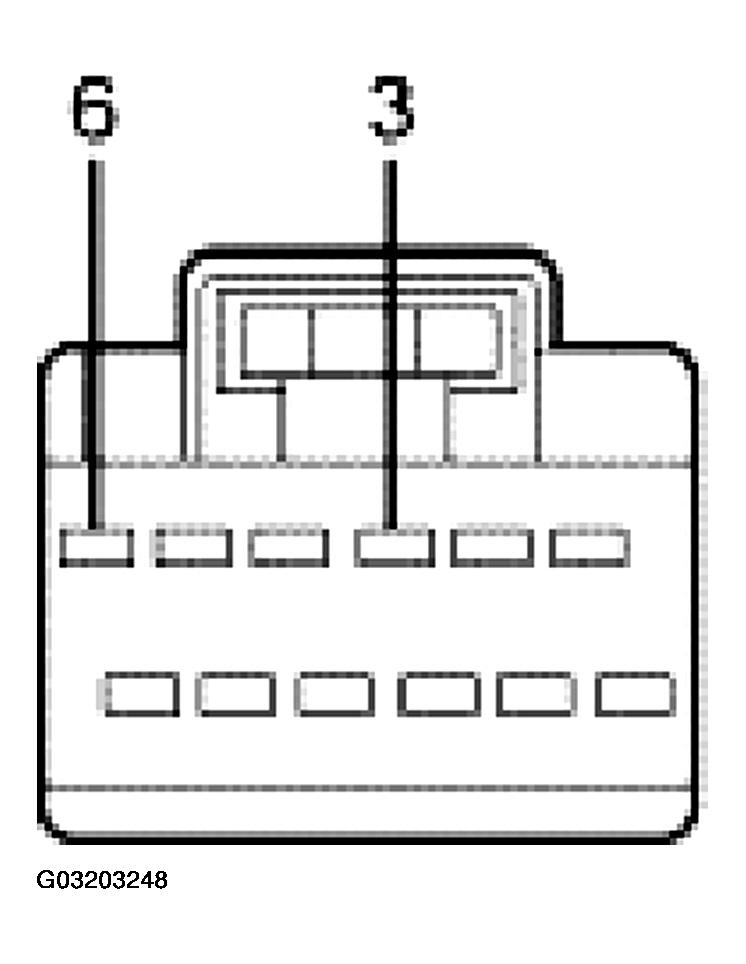

FEM C201C CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 8-GL7 (WH) signal circuit from the hood ajar switch | 0 ohms between the FEM and the hood ajar switch, greater than 10,000 ohms to ground with the FEM and the hood ajar switch disconnected. |
| 6 | 29-DK20 (OG/GN) power feed to the FEM | 12 volts to FEM with key ON, greater than 10, 000 ohms to ground with the FEM disconnected. |
