RH Instrument Panel Junction Block C261
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

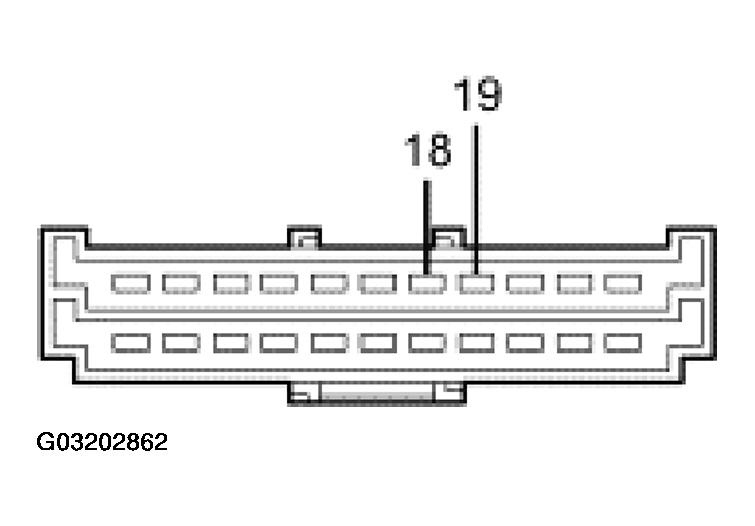

CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 18 | 29S-LC23 (OG/WH) RH footwell lamp power supply circuit | Greater than 10,000 ohms between RH instrument panel junction block and ground with RH footwell lamp disconnected. Less than 5 ohms between RH instrument panel junction block and RH footwell lamp. |
| 19 | 29S-LC1 (OG/BU) glove compartment lamp and RH footwell lamp power supply circuit between the CBJ and RH instrument panel junction block | Greater than 10 volts between RH instrument panel junction block and ground. Greater than 10,000 ohms between RH instrument panel junction block and ground. Less than 5 ohms between RH instrument panel junction block and CJB. |
