Puddle Lamps C520, C601

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

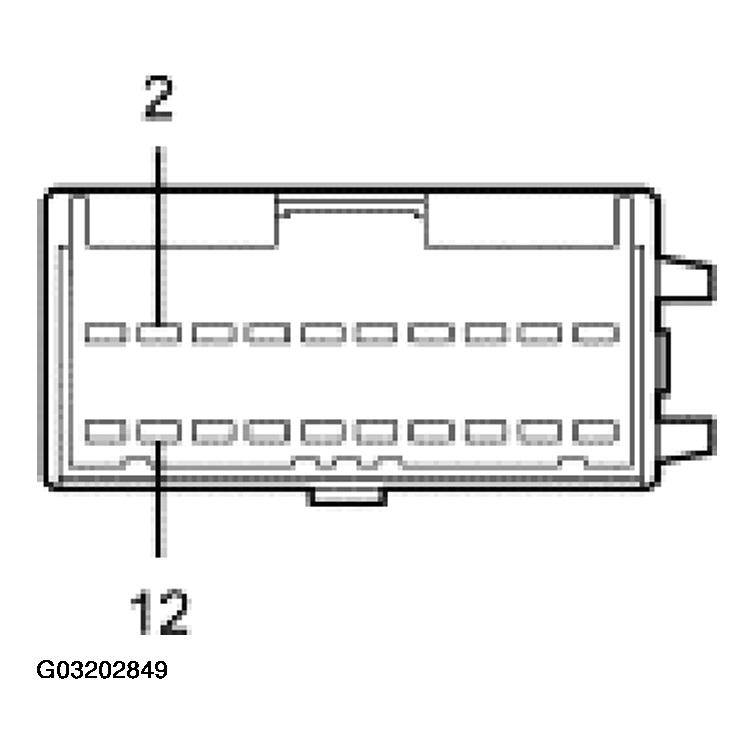

Fig 1: Identifying Puddle Lamps C520, C601
G03202849Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 (C520) 29S-LC34 (OG/YE) LH puddle lamp power supply circuit Greater than 10 volts between LH puddle lamp and ground. Greater than 10,000 ohms between LH puddle lamp and ground.
2 (C601) 29S-LC36 (OG/YE) RH puddle lamp power circuit Greater than 10 volts between RH puddle lamp and ground. Greater than 10,000 ohms between RH puddle lamp and ground.
12 (C520) 9-LC34 (BN) LH puddle lamp ground circuit Greater than 10,000 ohms between puddle lamp and ground with FEM disconnected. Less than 5 ohms between puddle lamp and FEM.
12 (C601) 9-LC36 (BN) RH puddle lamp ground circuit Greater than 10,000 ohms between puddle lamp and ground with FEM disconnected. Less than 5 ohms between puddle lamp and FEM.
