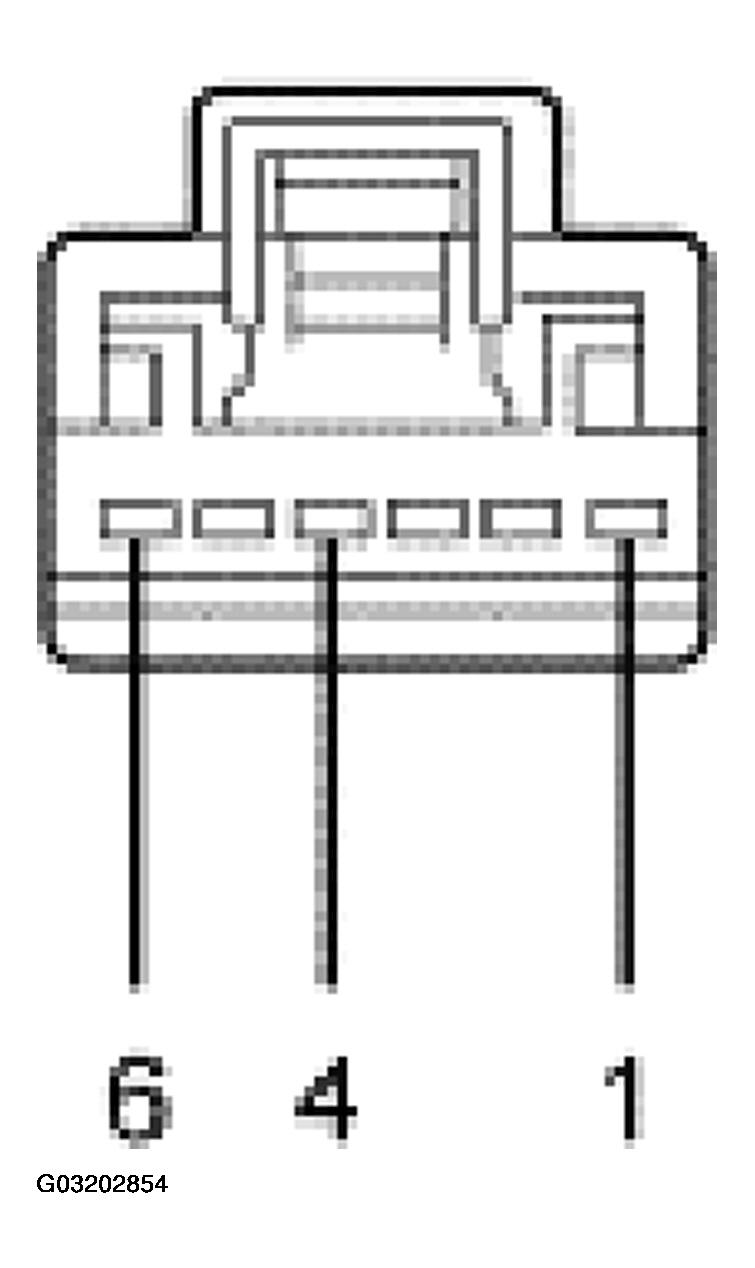

Map Lamps Switches C905, C910
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 (C905) | 31S-LB19 (BK/BU) RH map lamp switch power circuit | Greater than 10,000 ohms between RH map lamp switch and ground with RH map lamp switch and RH map lamp disconnected. Less than 5 ohms between RH map lamp and RH map lamp switch. |
| 1 (C910) | 31S-LB12 (BK/YE) LH map lamp switch power circuit | Greater than 10,000 ohms between LH map lamp switch and ground with LH map lamp switch and LH map lamp disconnected. Less than 5 ohms between LH map lamp and LH map lamp switch. |
| 4 (C905) | 31-LB20 (BK/OG) RH map lamp, demand lamp function, circuit ground | Less than 5 ohms between map lamp switch and ground. |
| 4(C910) | 31-LB13 (BK/BU) LH map lamp, demand lamp function, circuit ground | Less than 5 ohms between map lamp switch and ground. |
| 6 (C905) | 9-LB20 (BN/BU) RH map lamp, interior lamp function, circuit ground | Greater than 10,000 ohms between RH map lamp switch and ground with FEM disconnected. Less than 5 ohms between RH map lamp switch and FEM. |
| 6(C910) | 9-LB13 (BN/RD) LH map lamp, interior lamp function, circuit ground | Greater than 10,000 ohms between LH map lamp switch and ground with FEM disconnected. Less than 5 ohms between LH map lamp switch and FEM. |
