Luggage Compartment Lid Ajar Switch C429

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

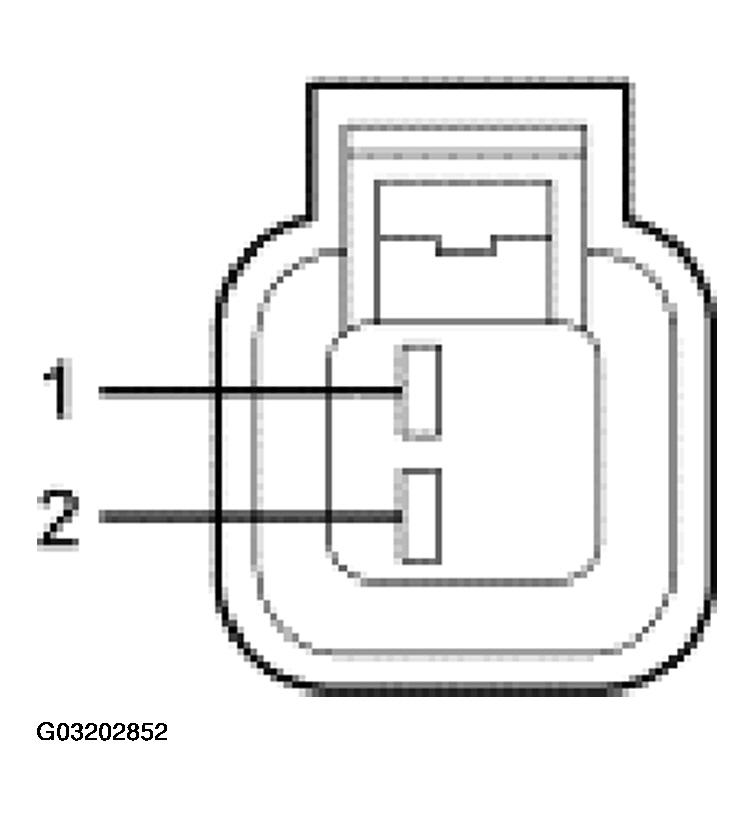

Fig 1: Identifying Luggage Compartment Lid Ajar Switch C429
G03202852Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 8-GL20 (WH/BK) Luggage compartment lid ajar switch power circuit Greater than 10,000 ohms between luggage compartment lid ajar switch and ground with luggage compartment lid ajar switch disconnected. Less than 5 ohms between luggage compartment lid ajar switch and REM.
2 31-GL20 (BK/RD) Luggage compartment lid ajar switch ground circuit Less than 5 ohms between luggage compartment lid ajar switch and ground.
