Luggage Compartment Lamp C428

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

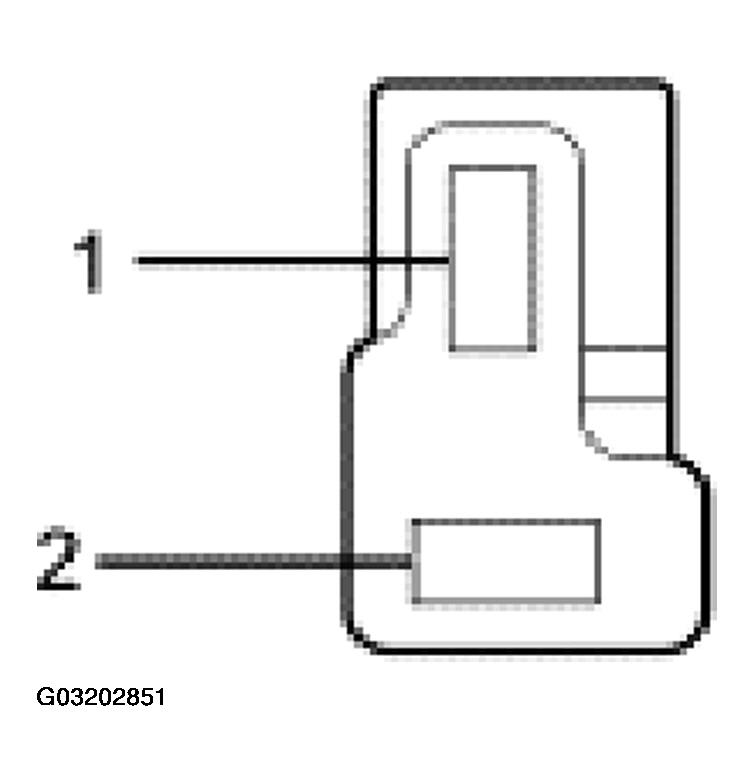

Fig 1: Identifying Luggage Compartment Lamp C428
G03202851Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 29S-LB25 (OG/BU) Luggage compartment lamp power circuit Greater than 10 volts between luggage compartment lamp and ground. Greater than 10,000 ohms between luggage compartment lamp and ground.
2 31S-LB25 (BK/BU) Luggage compartment lamp ground circuit Greater than 10,000 ohms between luggage compartment lamp and ground with REM disconnected. Less than 5 ohms between luggage compartment lamp and REM.
