LH Instrument Panel Junction Block C224

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

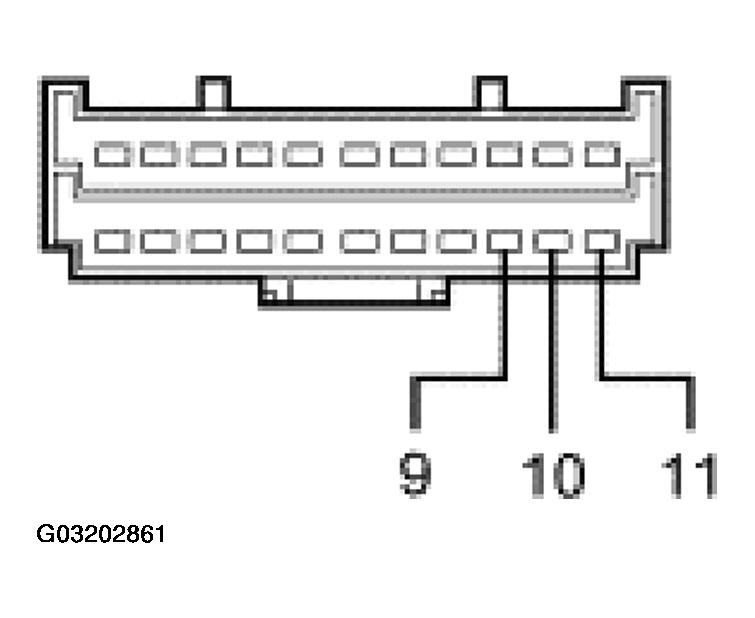

Fig 1: Identifying LH Instrument Panel Junction Block C224
G03202861Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
9 31S-LC4 (BK/BU) LH and RH footwell lamp ground circuit between LH instrument panel junction block and auxiliary junction box Greater than 10,000 ohms between LH instrument panel junction box and ground with auxiliary junction box disconnected. Less than 5 ohms between LH instrument panel junction box and auxiliary junction box.
10 31S-LC23 (BK/WH) RH footwell lamp ground circuit Greater than 10,000 ohms between LH instrument panel junction block and ground with RH footwell lamp disconnected. Less than 5 ohms between LH instrument panel junction block and RH footwell lamp.
11 31S-LC11 (BK/WH) LH footwell lamp ground circuit Greater than 10,000 ohms between LH instrument panel junction block and ground with LH footwell lamp disconnected. Less than 5 ohms between LH instrument panel junction block and LH footwell lamp.
