Glove Compartment Lamp C254

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

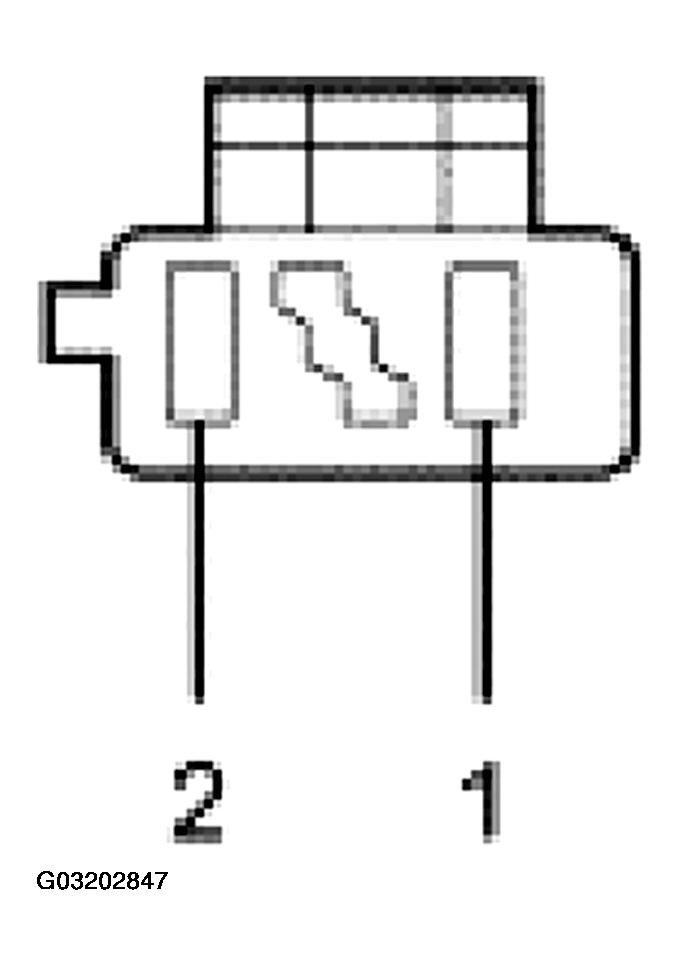

Fig 1: Identifying Glove Compartment Lamp C254
G03202847Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 29S-LB8 (OG) glove compartment lamp power circuit Greater than 10 volts between glove compartment lamp and ground. Greater than 10,000 ohms between glove compartment lamp and ground with lamp connector disconnected.
2 31-LB8 (BK/OG) glove compartment lamp ground circuit Less than 5 ohms between glove compartment lamp and ground.
