Footwell Lamps C266 and C209

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

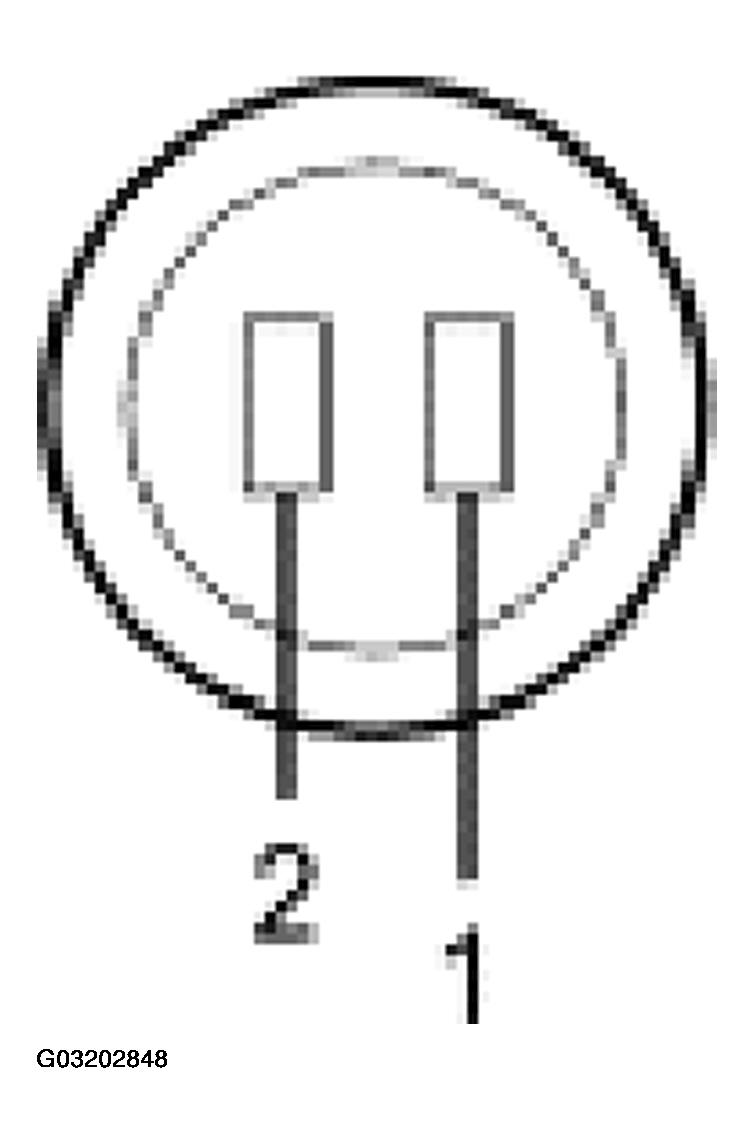

Fig 1: Identifying Footwell Lamps C266 And C209
G03202848Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 (C266) 31S-LC23 (BK/WH) RH footwell lamp ground circuit Greater than 10,000 ohms between footwell lamp and ground with FEM disconnected. Less than 5 ohms between footwell lamp and FEM.
1 (C209) 31S-LC11 (BK/WH) LH footwell lamp ground circuit Greater than 10,000 ohms between footwell lamp and ground with FEM disconnected. Less than 5 ohms between footwell lamp and FEM.
2 (C266) 29S-LC23 (OG/WH) RH footwell lamp power supply circuit Greater than 10 volts between RH footwell lamp and ground. Greater than 10,000 ohms between RH footwell lamp and ground with footwell lamp disconnected.
2 (C209) 29S-LC11 (OG/WH) LH footwell lamp power supply circuit Greater than 10 volts between LH footwell lamp and ground. Greater than 10,000 ohms between LH footwell lamp and ground with footwell lamp disconnected.
