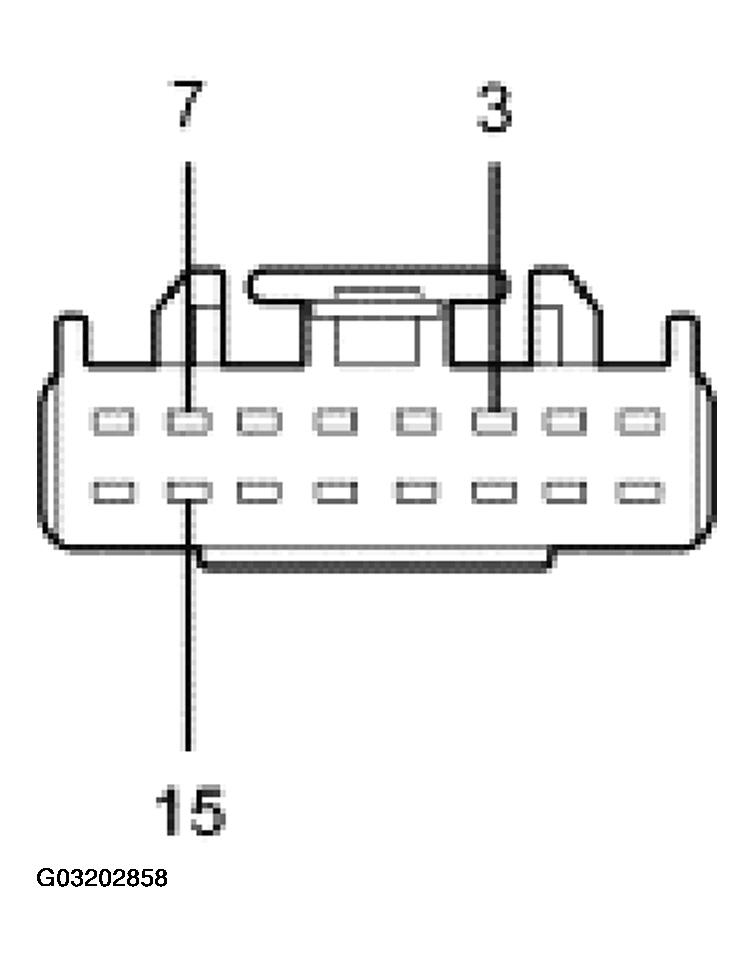

Auxiliary Junction Box C283b
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 31S-LC3 (BK/BU) interior lamp ground circuit between auxiliary junction box and FEM | Greater than 10,000 ohms between auxiliary junction box and ground with FEM disconnected. Less than 5 ohms between auxiliary junction box and FEM. |
| 7 | 29S-LC34 (OG/YE) LH puddle lamp power supply circuit | Greater than 10,000 ohms between auxiliary junction box and ground with LH front puddle lamp disconnected. Less than 5 ohms between auxiliary junction box and LH front puddle lamp. |
| 15 | 29S-LC5 (OG/GN) LH footwell lamp and LH front puddle lamp power supply circuit | Greater than 10 volts between auxiliary junction box and ground. Greater than 10,000 ohms between auxiliary junction box and ground. Less than 5 ohms between auxiliary junction box and CJB. |
