Auxiliary Junction Box C283a

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

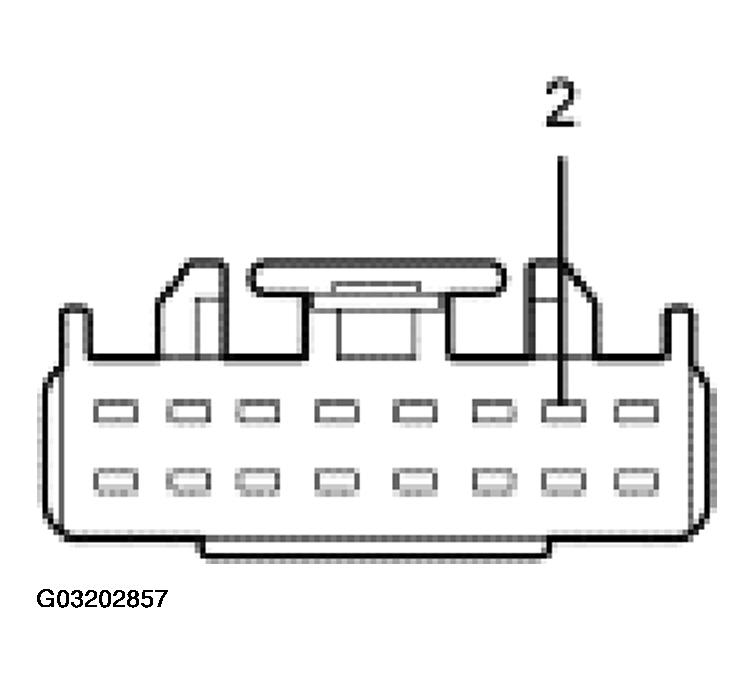

Fig 1: Identifying Auxiliary Junction Box C283a
G03202857Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 9-LB1 (BN) interior lamp ground circuit Greater than 10 volts between auxiliary junction box and ground. Greater than 10,000 ohms between auxiliary junction box and ground.
