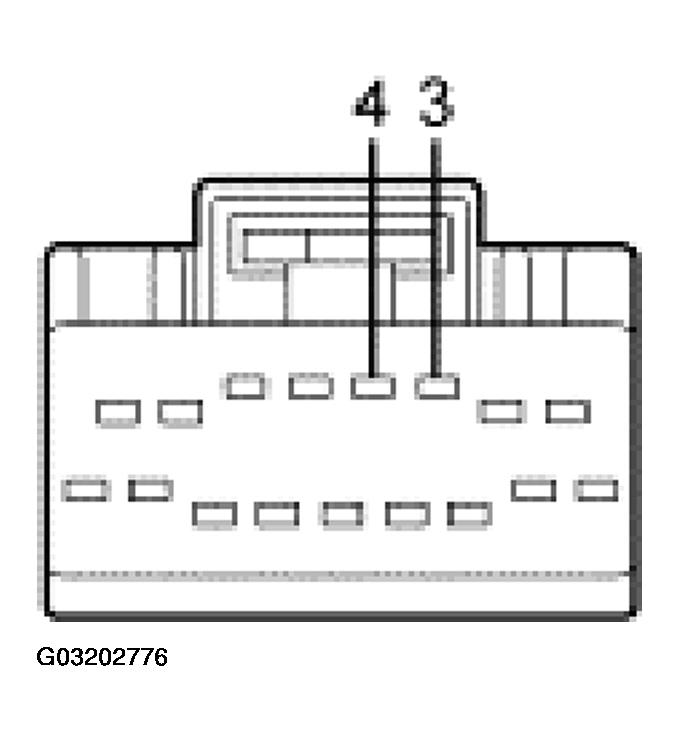

REM C420e
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 31S-LG12(BK/YE) LH rear turn signal lamp control ground circuit | Less than 5 ohms between the REM and the LH rear turn signal lamp. Greater than 10 volts with the ignition switch ON. |
| 4 | 31S-LG19 (BK/BU) RH rear turn signal lamp control ground circuit | Less than 5 ohms between the REM and the RH rear turn signal lamp. Greater than 10 volts with the ignition switch ON. |
