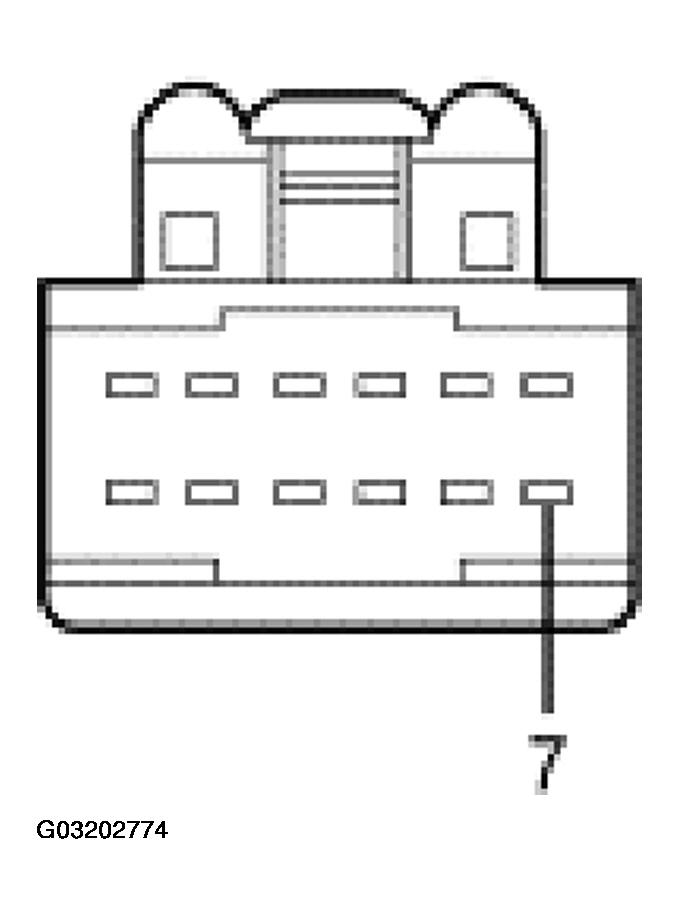

Multifunction Switch C202
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 7 | 8-LG43 (WH/VT) multifunction switch signal output circuit | Less than 5 ohms between the multifunction switch and the instrument cluster. Greater than 10,000 ohms between the instrument cluster and ground. |
