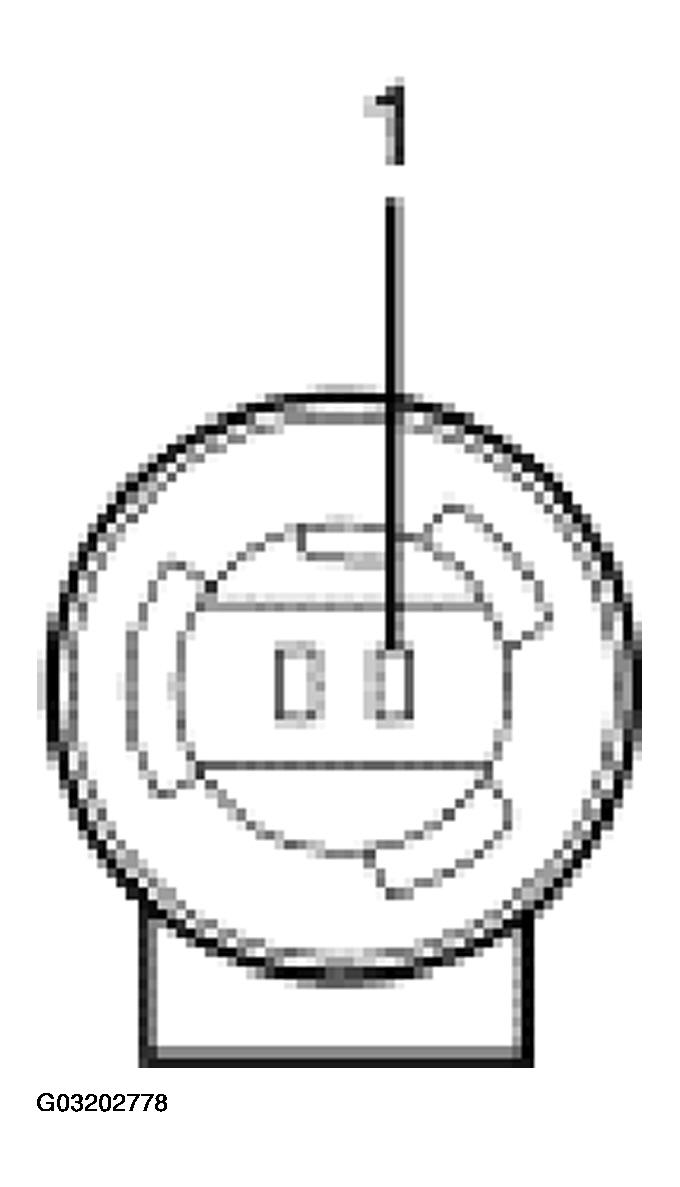

LH Rear Turn Signal Lamp C413, RH Rear Turn Signal Lamp C416
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
29S-LG12 (OG/YE) switched B+ circuit |
Greater than 10 volts with the ignition switch ON. |
