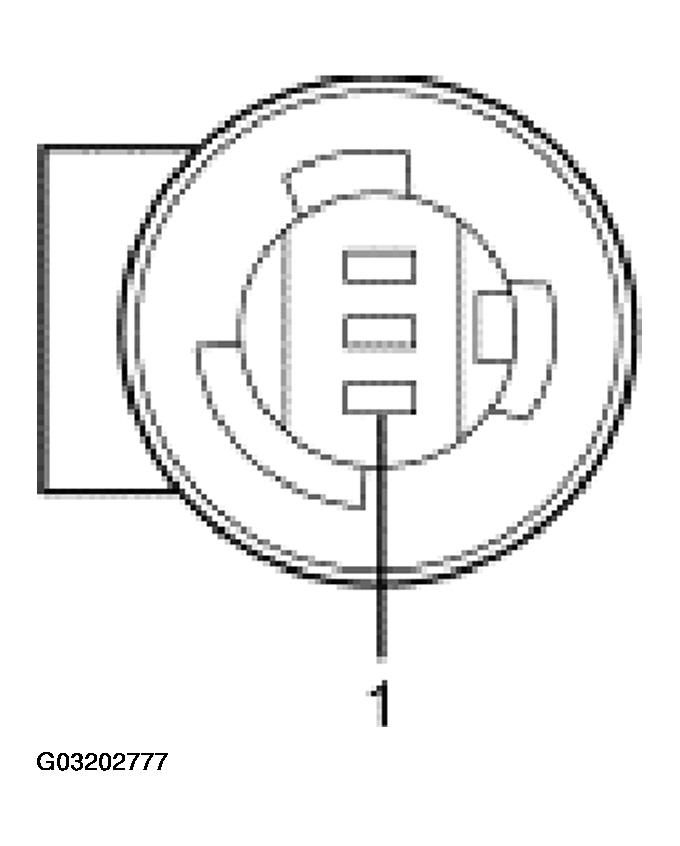

LH Front Turn Signal Lamp C1023, RH Front Turn Signal Lamp C1043
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
29S-LF16 (OG/GN) switched B+ circuit |
Greater than 10 volts with the ignition switch ON. |
